Slow, inefficient, and potentially hazardous propane unloading can be a significant drag on operational efficiency. These challenges often lead to lost product through venting and increased operational costs from long turnaround times. For many facilities, traditional pump-based methods struggle to overcome issues like cold weather performance dips and incomplete product recovery. This is where a modern approach using vapor-differential transfer makes a critical difference. By leveraging an LPG Gas Compressor, operators can transform their unloading process from a liability into a competitive advantage. This article provides a clear, evidence-based framework for facility managers and engineers to evaluate and justify integrating a compressor-based unloading system, focusing on speed, safety, and total product recovery.
Before upgrading any system, it's essential to define what success looks like. In propane and LPG handling, operational excellence hinges on a few core metrics. When measured against these criteria, the limitations of traditional pump-only systems become apparent, creating a compelling business case for modernization.
A successful unloading operation is more than just moving liquid from point A to B. It is a carefully measured process that directly impacts profitability and safety. Key performance indicators include:
Pump-based systems have been a long-standing solution, but they present several operational challenges, particularly when evaluated against the success criteria above.
Slow transfer rates, especially in cold weather or with long pipe runs.
Pumps rely on a positive pressure differential at the inlet, known as Net Positive Suction Head (NPSH), to function. In cold weather, the vapor pressure inside a propane tank drops significantly. This reduction makes it difficult for the pump to draw liquid, leading to sluggish performance and extended unloading times. Long or complex piping runs also increase friction, further degrading pump efficiency.
Product loss from incomplete evacuation and necessary venting.
Once a pump moves the bulk of the liquid, a significant amount of propane remains in the tanker as vapor. A pump cannot move this vapor. To disconnect the hoses safely, this residual vapor pressure must often be vented into the atmosphere. This practice is not only a direct financial loss but also an environmental concern.
Safety risks associated with pump cavitation (NPSH issues).
When the available NPSH is too low, the liquid propane can flash into vapor within the pump impeller. These vapor bubbles then collapse violently, a phenomenon known as cavitation. Cavitation creates intense vibration and noise, rapidly destroying pump seals, bearings, and impellers. This leads to costly repairs, downtime, and an increased risk of dangerous leaks.
Higher maintenance burden on pumps handling cryogenic liquids.
Propane is a cryogenic liquid that offers poor lubricity. This puts immense stress on the mechanical seals and bearings within a pump. These components wear out more quickly than in other applications, leading to a frequent and costly preventive maintenance schedule to avoid catastrophic failure.
An LPG unloading system built around a gas compressor operates on a fundamentally different principle than a pump. Instead of mechanically pushing liquid, it intelligently manipulates vapor pressure to create a powerful and efficient transfer process. This method, known as vapor differential transfer, is a two-phase operation that ensures both speed and total product recovery.
The process is elegant and effective, using the compressor to create a pressure imbalance that does all the heavy lifting.
A well-designed compressor system is more than just the compressor itself. It is an integrated set of components working in harmony to ensure safe and efficient operation.
Choosing between a compressor-based system and a traditional pump requires a thorough evaluation of performance, safety, and long-term costs. While pumps may have a lower initial purchase price, a propane gas compressor often delivers a far superior Total Cost of Ownership (TCO) when all factors are considered.
The following table provides a direct comparison across key evaluation criteria.
| Evaluation Factor | Compressor System | Liquid Pump System |
|---|---|---|
| Transfer Rate & Efficiency | Maintains consistently high flow rates. Performance is less affected by cold temperatures or long pipe runs. Unloads tanker completely, including all vapor. | Performance degrades significantly in cold weather due to low NPSH. Susceptible to slowdowns from high vertical lift or long distances. Leaves residual vapor product behind. |
| Product Recovery & ROI | Recovers over 99% of residual vapor, turning a routine loss into direct revenue. The ROI from recovered product alone can justify the investment. | No inherent vapor recovery capability. Residual vapor must be vented (a total loss) or returned to the supplier (a lost opportunity). |
| Safety & Reliability | Oil-free design eliminates product contamination risk. The system has fewer moving parts in the main liquid line, reducing potential leak points. | Constant risk of pump seal failure, leading to leaks. Highly prone to cavitation damage if NPSH is not properly managed, causing downtime and safety hazards. |
| Total Cost of Ownership (TCO) Drivers | Potentially higher initial system cost. TCO is lowered by eliminating product loss, increasing throughput (more transfers per day), and reducing maintenance on seals/bearings. | Lower initial component cost. TCO is driven higher by ongoing costs of lost product, frequent maintenance, and potential downtime from cavitation damage. |
Once you have decided to pursue a compressor-based solution, selecting the right system requires careful consideration of several key specifications. These choices will directly impact the performance, safety, and longevity of your liquid gas transfer operation.
For any application involving propane or LPG meant for commercial or residential use, an oil-free design is the undisputed industry standard. Here’s why it is non-negotiable:
Properly sizing the compressor is critical for achieving your operational goals. The key metric is displacement, typically measured in Cubic Feet per Minute (CFM) or cubic meters per hour (m³/hr).
The correct capacity is determined by matching the compressor's displacement to the volume of the tankers or railcars you service and your desired turnaround time. A good supplier can help you calculate the ideal size. It is also important to understand the risks of improper sizing. While undersizing leads to slow transfers, oversizing is also problematic. An oversized compressor can push liquid too fast, potentially tripping the excess flow valves in the tanker's piping and bringing the entire operation to a halt.
You can acquire a compressor system in two primary ways: as a pre-engineered skid or by purchasing individual components.

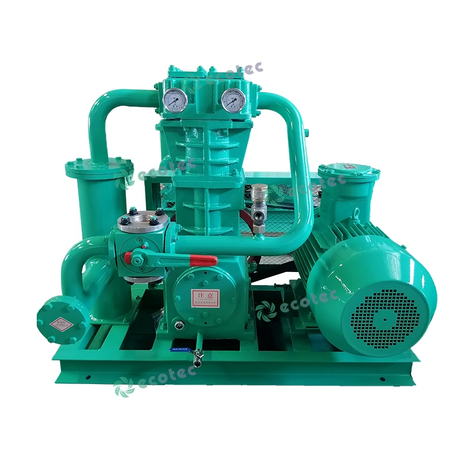

These are complete, pre-assembled units that include the compressor, motor, liquid trap, piping, and controls, all mounted on a single steel frame.
This approach involves sourcing the compressor, motor, valves, and other parts separately and assembling them on-site.
Given the hazardous nature of propane, adherence to safety and compliance standards is paramount. When selecting equipment, verify that it meets the necessary certifications for your region and application. Look for components, especially electrical ones, rated for hazardous locations, such as ATEX (in Europe) or Class 1, Division 1 (in North America). Additionally, ensure that any pressure-containing components like the liquid trap are built and certified to relevant pressure vessel codes, such as the ASME Boiler and Pressure Vessel Code.
A high-quality gas tank compressor is only as effective as the system it operates within. Proper implementation and adherence to operational best practices are crucial for maximizing performance, ensuring safety, and achieving the full return on your investment.
The efficiency of vapor differential transfer is highly dependent on minimizing pressure loss throughout the system. A thoughtful piping design is essential.
The liquid trap, or separator, is arguably the most important safety component in the entire system. Its sole purpose is to protect the compressor from catastrophic failure. A compressor is designed to handle vapor only. If slugs of liquid propane enter the compression cylinders, they cannot be compressed. This event, known as hydrostatic lock, can instantly cause severe damage, such as bent connecting rods, a cracked cylinder, or a shattered crankcase. The liquid trap must be installed correctly on the suction side of the compressor and should be checked and drained as part of the pre-operational procedure.
Proper training is vital for safe and efficient operation. Personnel must understand that they are managing a two-phase process, not just turning on a pump. Key training points should include:
While an oil-free compressor system is robust, it requires regular preventive maintenance to ensure a long service life. Adhering to the manufacturer's recommended schedule is key for uptime and safety. Typical maintenance tasks include:
Adopting a compressor-based LPG unloading system is a strategic upgrade that moves your operation beyond simply transferring product. It is a transition to optimizing a core business process for maximum speed, efficiency, and profitability. By accelerating turnaround times, eliminating product loss through total vapor recovery, and enhancing operational safety, this technology delivers a compelling and rapid return on investment. The decision, however, is not about a simple component swap. Success hinges on a complete system approach, considering everything from the compressor's specifications to piping design and operator training.
To determine the precise ROI and system configuration for your facility, contact our application engineers for a detailed unloading process assessment.
A: The primary advantage is its ability to perform total product recovery through its vapor recovery cycle, eliminating costly product loss. It also typically offers faster and more reliable transfer rates by creating a pressure differential rather than relying on mechanical pumping, especially in varied weather conditions.
A: No. This is a common misconception. The compressor only moves vapor. It creates a pressure difference that *pushes* the liquid from one tank to another. A critical safety device called a liquid trap is installed before the compressor to prevent any liquid from entering and causing severe damage.
A: After the liquid is transferred, a 4-way valve reverses the compressor's connections. It then pulls the remaining low-pressure propane vapor from the tanker, compresses it, and sends it to the main storage tank. This process effectively recovers all remaining product, leaving the tanker nearly empty and depressurized.
A: Regular maintenance focuses on checking and replacing wear parts like piston rings, rider rings, and valve components according to the manufacturer's schedule. Drive belts should also be inspected. Because the design is oil-free, there is no crankcase oil to change or monitor for product contamination, which simplifies maintenance.
A: Installation can be very straightforward, especially with pre-engineered, skid-mounted systems which are factory-tested and require minimal on-site assembly. The most critical factor is the proper integration with your facility's existing piping and electrical systems. A thorough site assessment by an expert is crucial for a smooth installation.
