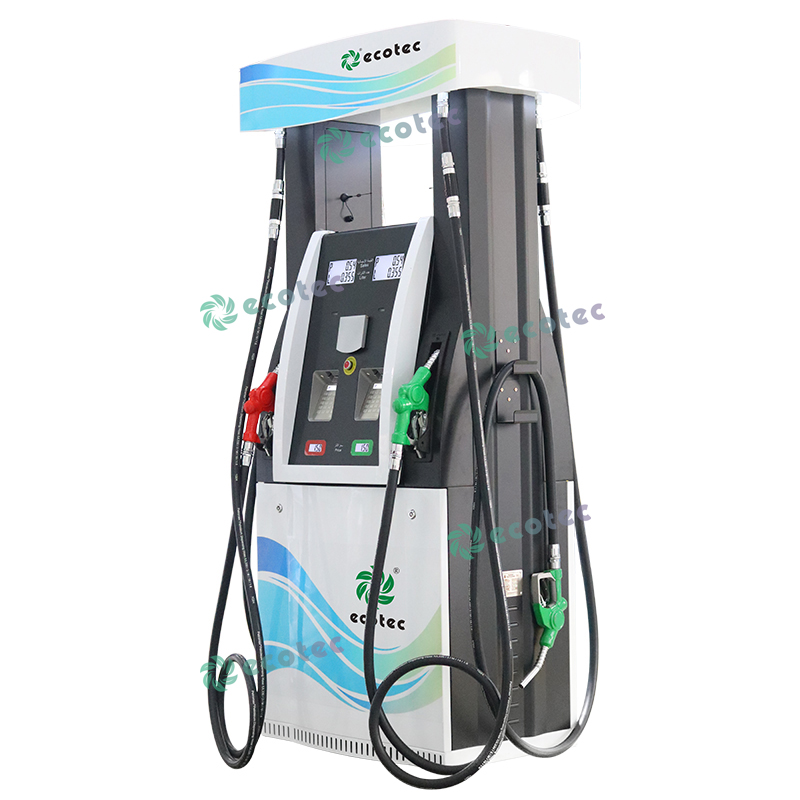

Ecotec Gilbarco Fuel Dispenser for Modern Gas Stations - Advanced Fuel Dispensing Station Solutions

Mounting type
in door, out door
Model Number
FUELPLUS-30L-380V-S
place of origin
Zhejiang, China
brand name
ecotec
Power
750 W, 2.2kw
Voltage
12 V, 24 V, 380 V, 220V/380V, 240 V
Material
Stainless Steel, Iron, Metal
Power Supply
110V/220V/380V, 50/60Hz
Design Life
10 years
Warrantee
2 Years for Main Parts
Pump
1-4 pump
Nozzle
1-8 Nozzle
Flow meter
1-8 Flow meter
Standard / Certificates
Atex, OIML Certificates
Solenoid Valve
3/4 inch
Type
tokheim fuel dispenser

  • HG224

  • ECOTEC

Availability:
Quantity:
Inquire Add to Basket

Products Specifications
Standard Model List
Dispenser
Model
Product/Pump
Flow Meter /Nozzle /Hose
Display
Flow rate LPM

Suction type
A112S
1
1
2
50L/M
A122S
1
1
2
45L/M
A224S
2
2
4
50L/M

Remote / Submersible type
A112R
1
1
2
50L/M
A122R
1
1
2
45L/M
A224R
2
2
4
50L/M
Nozzle number, product number ,flow rate all can be customized, contact for more details
Specification


Pump
Type
Optional (Motor pump or gear pump)
Inlet Pressure
≥54kPa.
Flow rate (L/min. )
55±5
Suction Distance (m)
6(vertical meter) / 50(horizontal meter)


Flow Meter
Type
Optional
Accuracy
±0.2%


Motor
Voltage(V)
12v/24v/110v/220v
Capacity(HP)
0.6kw per nozzle
Input Voltage
12v/24v/110v/220v
Nozzle
Auto Shut-off Nozzle
Environmental Condition
-40ºC~~+55ºC
Control Type
Solenoid Vale Control Type
Preset
Function Provided(Small LCD Indicator)


Display(Counter)
Type
LCD and Bright Backlight
Digit of Volume
0~~999, 999(6 Digits), Decimal point can be changed
Digit of Amount
0~~999, 999(6 Digits), Decimal point can be changed
Digit of Unit price
0~~9999(4 Digits), Decimal point can be changed
Digit of Total Range
0~~99, 999, 999, 99


Optional Display
Type
LCD and Bright Backlight
Digit of Volume
0~~99, 999, 999(8 Digits), Decimal point can be changed
Digit of Amount
0~~99, 999, 999(8 Digits), Decimal point can be changed
Digit of Unit price
0~~999999(6 Digits), Decimal point can be changed
Digit of Total Range
0~~99, 999, 999, 99
Totalizer
1~~9, 999, 999
Hose
4.5m
Weight
800 kgs
Dimension(L×W×H)
Depending on the model
Qty of Container
40FT: 14 pcs


Previous:
Next:
Contact Us

Related Products

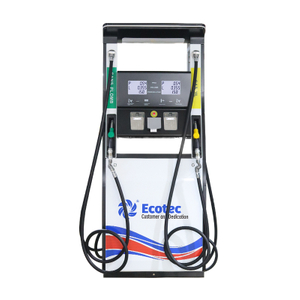

Ecotech Saike Trutech Fuel Dispenser with Gilbarco MOTY System
Ecotech Saike Trutech Fuel Dispenser with Gilbarco MOTY System

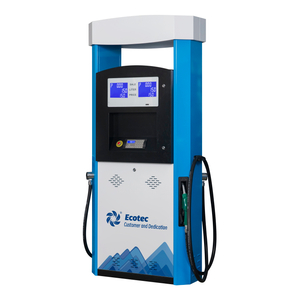

Ecotec High Performance BG224 Double Nozzle Fuel Dispenser Pump for Fuel Station Tatsuno
Ecotec High Performance BG224 Double Nozzle Fuel Dispenser Pump for Fuel Station Tatsuno

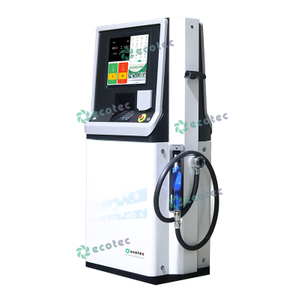

Ecotec Single Nozzle Smart Fuel Dispenser for Petrol Station
