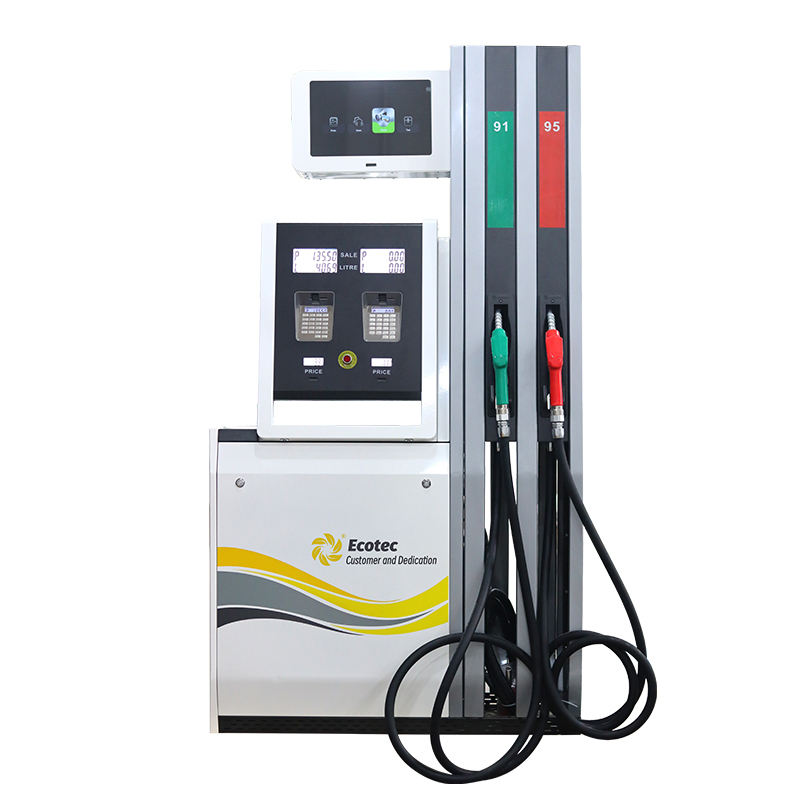

Ecotec Energy Submersible Fuel Dispenser with Four Flow Meter, Nozzle, Display and Printer

Product Description
Product Name
Tatsuno fuel dispenser
Ambient temperature
-25℃~+55℃
Humidity
≤90%
Flow rate
5~40L/min to 5~220L/min
Nozzle
Auto. shut-off
Suction distance
6m(vertical),50m(horizontal)
Accuracy
±0.30%
Repeating tolerance
≤0.15%
Hose
3m(low hang),4.5m(high hang),as customized
Inlet pressure
≥54KPa
Outlet pressure
≤0.3MPa
Voltage
220V/380V(50/60Hz)
Power
1HP(0.75Kw)
Noise
≤80dB(A class)
Unit price range
0.01~999.99
Single volume range
0.01~999999.99
Accumulative volume range
0.01~9999999999.99
Explosion-proof signal
ExdmbIIAT3

Model:
FD244
Brand:
ECOTEC

Availability:

Quantity:



Inquire Add to Basket

Product Description

For 4 nozzle:

Fuel Dispenser FD224

2 x Product (Submersible type)
2 x Tatsuno pump
4 x Tatsuno meter
4 x nozzle 11A, 3/4" NPT, outlet: 13/16"
4 x Black, length:4 M with coupling
4 x Solenoid valve MSF-20BA
4 x Breakaway valve, 3/4 inch
2 x Electronic controller WA122,with RS485
2 x Preset keyboard Z26, white color
4 x Display board X110,886, white
All Painting Body
Power supply: 220V, 50hz
Package: Standare Export caton
With one printer, NO LIGHT


Specification
Pump	Type	Optional(Tatsuno/Bennet/Tokheim)
	Inlet pressure	≥54kPa.
	Flow Rate(L/MIN)	55±5
	Suction Distance(m)	6(vertical meter) / 50(horizontal meter)
Flow Meter	Type	Optional
Flow Meter	Accuracy	±0.2%
Motor	Voltage(V)	110V/220V/380V, 50Hz/60Hz
Motor	Capacity(hp)	1.5HP(0.75kw),2HP(1.1KW)	1HP (0.75kw)
Input Voltage	12V/24V/110V/220V/380V,50HZ/60HZ
Nozzle	Auto Shut-off Nozzle
Environmental Condition	-40ºC~~+55ºC		-40ºC~~ +55ºC
Control Type	Solenoid Vale Control Type
Preset	Function Provided(Small LCD Indicator)
Display (Counter)	Type	LCD and Bright Backlight
	Digit of Volume	0~~999(6 Digits), Decimal point can be changed
	Digit of Amount	0~~999(6 Digits), Decimal point can be changed
	Digit of Unit Price	0~~999(6 Digits), Decimal point can be changed
	Digit of Total Range	0~~99, 999, 999, 99
Totalizer		Totalizer		1~~9, 999, 999
Hose		4 M
Weight		250KG
Dimension(LWH)		10606002200(mm)
Qty of Container		40FT: 66pcs 20FT: 22pcs
