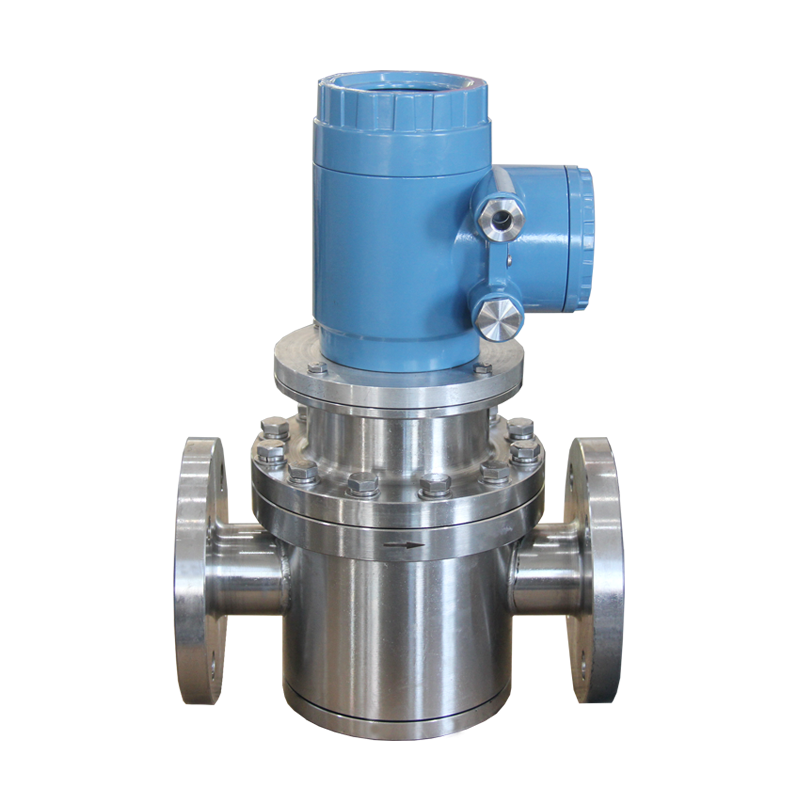

LC Series
Ecotec
9026100000
| Quantity: | |
|---|---|
-Easy maintenance
| Model Series | LC-A | LC-E | LC-B、C | LC-W |
| Housing Material | Cast Iron | Cast Steel | Stainless Steel（SS304/316） | |
| Nominal Pressure | 1.6MPa | 2.5Mpa(DN150~200), 4.0Mpa(DN80~100), 6.3Mpa(DN＜50) | 1.6, 2.5Mpa | |
| Nominal Diameter | 10~200mm | 6~15mm | ||
| Accuracy | ±0.5%；±0.2% | |||
| Installation | Flange/Threaded/Clamp | |||
| Display | Mechanical/Digital | |||
| Signal Output | Pulse/4-20mA/RS485/HART | |||
| Power Supply | 3.6V/24VDC (for digital display/signal output) | |||
| IP Rating | IP65 (Signal transmitter & Speed governor) | |||
| Explosion-proof Rating | Exd IIC T6 Gb (optional) | |||
| Medium | Oils, Slurries & Aqueous solutions |
| Viscosity | 0.3~2000mPa.s |
| Flow Range | 0.06~340m³/h |
| Temperature | -20~60℃ (up to 200℃ with a heat radiator for A,B &E series) |
| Ambient Temperature | -40~50℃ |
