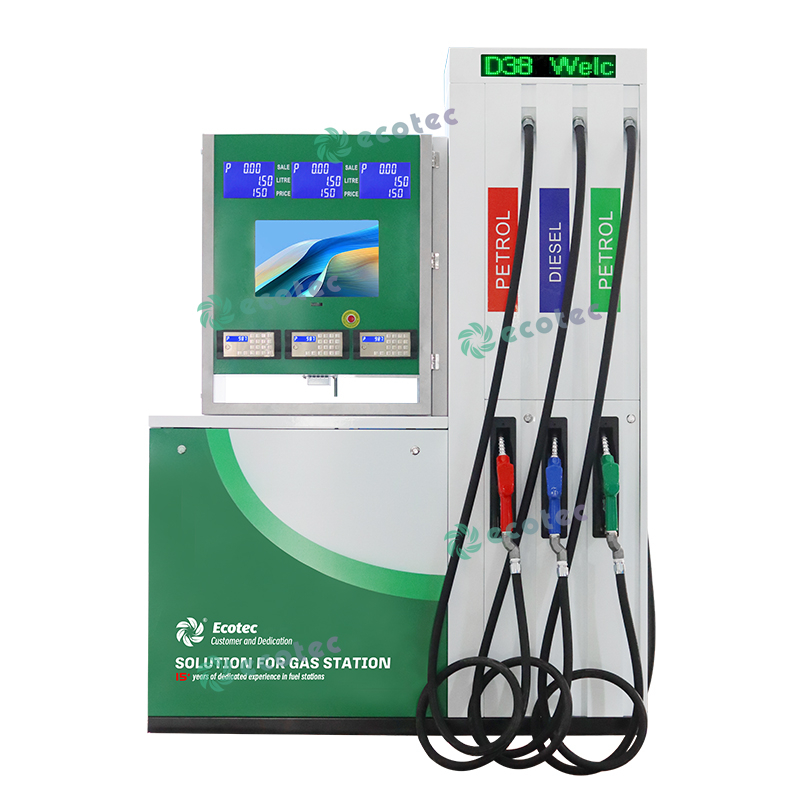

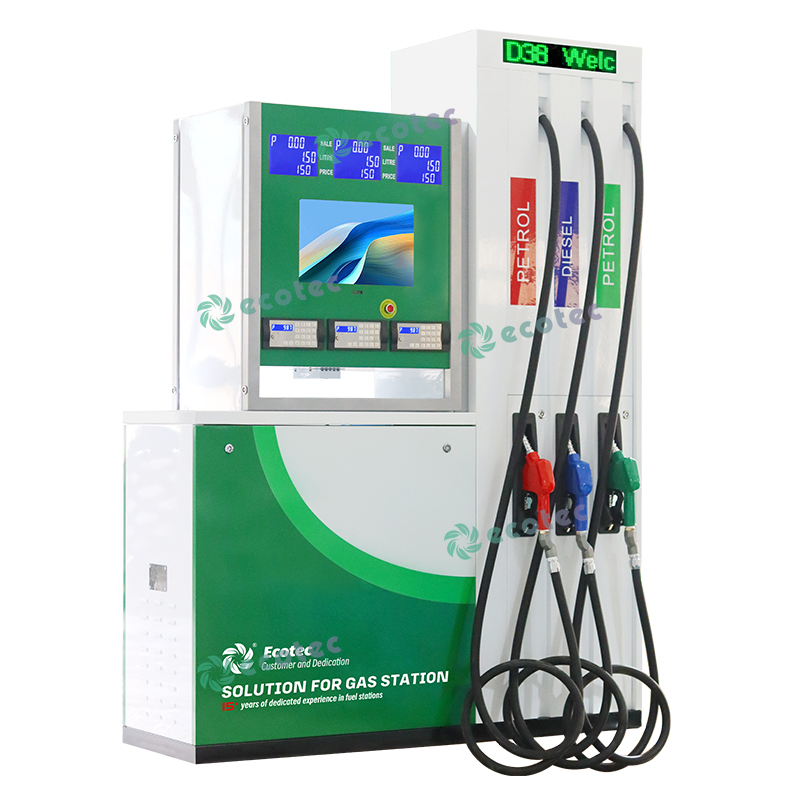

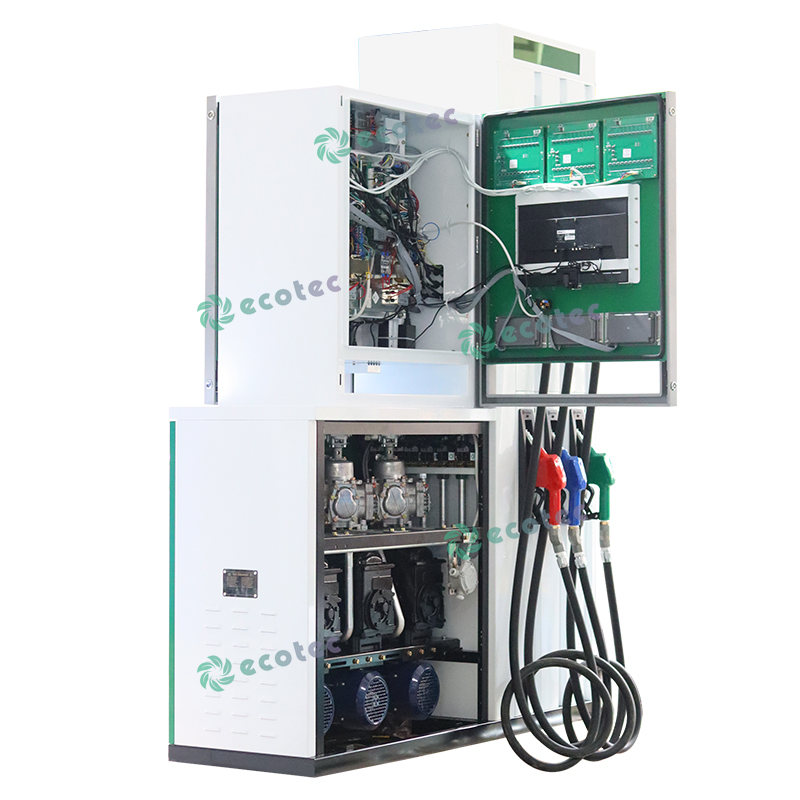

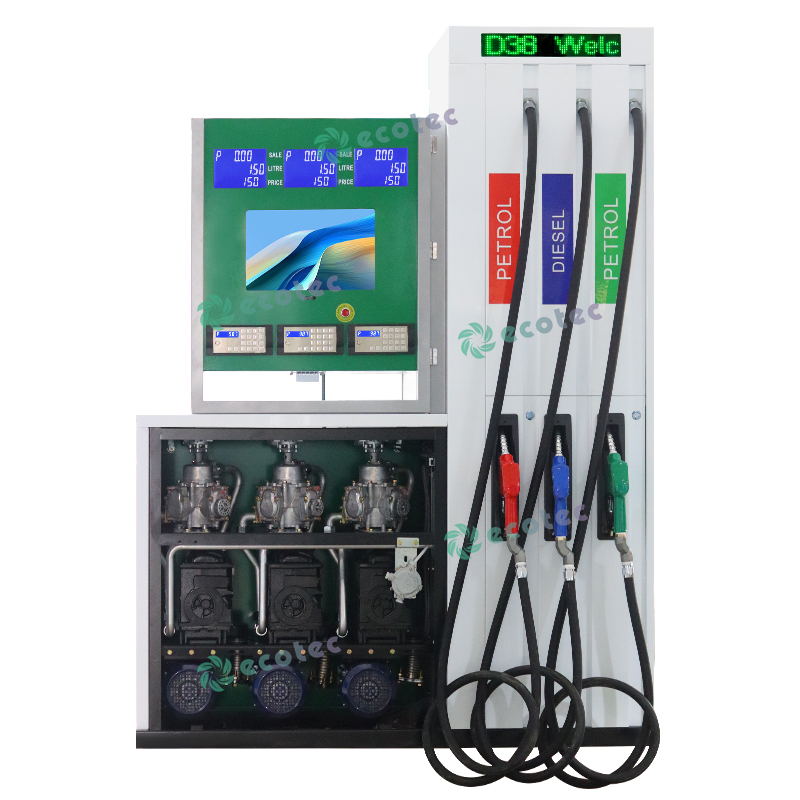

Ecotec Tatsuno Type Fuel Dispenser with 6-Nozzles for Petrol Service Equipment-FE366

Product Description
Product Name
Tatsuno fuel dispenser
Ambient temperature
-25℃~+55℃
Humidity
≤90%
Flow rate
5~40L/min to 5~220L/min
Nozzle
Auto. shut-off
Suction distance
6m(vertical),50m(horizontal)
Accuracy
±0.30%
Repeating tolerance
≤0.15%
Hose
3m(low hang),4.5m(high hang),as customized
Inlet pressure
≥54KPa
Outlet pressure
≤0.3MPa
Voltage
220V/380V(50/60Hz)
Power
1HP(0.75Kw)
Noise
≤80dB(A class)
Unit price range
0.01~999.99
Single volume range
0.01~999999.99
Accumulative volume range
0.01~9999999999.99
Explosion-proof signal
ExdmbIIAT3

  • FE366

  • ECOTEC

Availability:
Quantity:
Inquire Add to Basket

Key attributes

Type
Fuel Dispenser
Material
Cast Iron
Nozzle
6 nozzles
Warranty
1 Year
pump
tatsuno/tokheim
Place of Origin
Zhejiang, China
Brand Name
Ecotec
Model Number
FE364
Working Voltage
220V 50Hz
Flow Rate
5-55L/MIN
Certificate
ISO9001
Product name
FE364 Fuel Dispenser
Motor
2x220V
Flow Meter
2xFM01HA
Nozzle
6x3/4 inch
Controller
Control Platform
LOGO
Customer's Logo
Package
Wooden box or Carton
Weight
700kg
Size
199*74*250CM

Packaging and delivery

Selling Units
Single item
Single package size
199X74X250 cm
Single gross weight
700.000 kg







Specification


Pump
Type
Optional(Tatsuno/Bennet/Tokheim)
Inlet pressure
≥54kPa.
Flow Rate(L/MIN)
55±5
Suction Distance(m)
6(vertical meter) / 50(horizontal meter)

Flow Meter
Type
Optional
Accuracy
±0.2%

Motor
Voltage(V)
110V/220V/380V, 50Hz/60Hz
Capacity(hp)
1.5HP(0.75kw),2HP(1.1KW)
1HP
(0.75kw)

Input Voltage
12V/24V/110V/220V/380V,50HZ/60HZ


Nozzle
Auto Shut-off Nozzle


Environmental Condition
-40ºC~~+55ºC
-40ºC~~
+55ºC

Control Type
Solenoid Vale Control Type


Preset
Function Provided(Small LCD Indicator)




Display
(Counter)
Type
LCD and Bright Backlight


Digit of Volume
0~~999(6 Digits), Decimal point can be changed


Digit of Amount
0~~999(6 Digits), Decimal point can be changed


Digit of Unit Price
0~~999(6 Digits), Decimal point can be changed


Digit of Total Range
0~~99, 999, 999, 99


Totalizer

Totalizer
1~~9, 999, 999
Hose

4 M


Weight

250KG


Dimension(L*W*H)

1060*600*2200(mm)


Qty of Container

40FT: 66pcs 20FT: 22pcs
