Transferring liquefied natural gas (LNG) at -162°C (-260°F) exposes traditional pump mechanics to extreme thermal stress. This harsh engineering reality forces plant operators to fundamentally rethink fluid containment and transfer strategies. Dynamic mechanical seals represent the primary vulnerability in cryogenic fluid transfer. They require complex flush systems and carry a high risk of leakage, boil-off, and freezing. When these dynamic seals fail, production halts immediately, and severe environmental safety hazards emerge. Fortunately, modern engineering offers a robust alternative. Sealless magnetic drive technology is rapidly transitioning from a specialized chemical processing tool to a foundational asset in cryogenic applications. It fundamentally alters the safety baselines and operational efficiency for modern facilities. In this guide, you will learn how magnetic propulsion eliminates dynamic seal degradation. We will explore the physics of magnetic torque, advanced thermal control methods, and how this architecture scales for the maritime green fuel transition.
Zero-Leak Architecture: Magnetic coupling eliminates dynamic seals, neutralizing the risk of hazardous vapor leaks and environmental compliance violations.
Thermal Control: Advanced non-conductive containment shells eliminate eddy current losses, preventing unwanted heat transfer into cryogenic fluids.
Reduced Complexity: Eradicates the need for external seal-flush and support systems, slashing maintenance windows and installation footprints.
Asset Protection: Specific mag-drive configurations support run-dry capabilities, safeguarding operations during unpredictable liquid supply disruptions.
Mechanical seals depend heavily on tight physical tolerances and continuous lubrication. These operational requirements severely degrade under cryogenic temperatures. When equipment processes ultra-cold liquids, metal components contract at different rates. This thermal contraction distorts seal faces, breaking the delicate fluid film necessary for proper lubrication. Operators face a massive business problem when attempting to maintain these traditional systems.
To combat freezing and seal face damage, traditional setups rely on auxiliary support systems. Engineers must install complex, space-consuming seal-flush and barrier fluid networks. These auxiliary systems demand constant monitoring. They add numerous potential failure points to your infrastructure. Furthermore, barrier fluids often require precise temperature regulation, consuming extra energy and manpower.
Seal degradation remains inevitable. It is never a question of "if" a dynamic seal will fail, but "when." The resulting scheduled maintenance and unscheduled downtime form the largest block of hidden costs in a traditional Cryogenic Pump lifecycle. Frequent rebuilds bleed operational budgets. Facilities lose thousands of dollars per hour when transfer processes suddenly stop due to a blown seal. Shifting away from mechanical seals eliminates this recurring financial drain.
Audit your current pump failure logs to identify recurring seal degradation patterns.
Calculate the actual floor space consumed by existing barrier fluid tanks.
Factor in the labor costs associated with routine seal inspections.

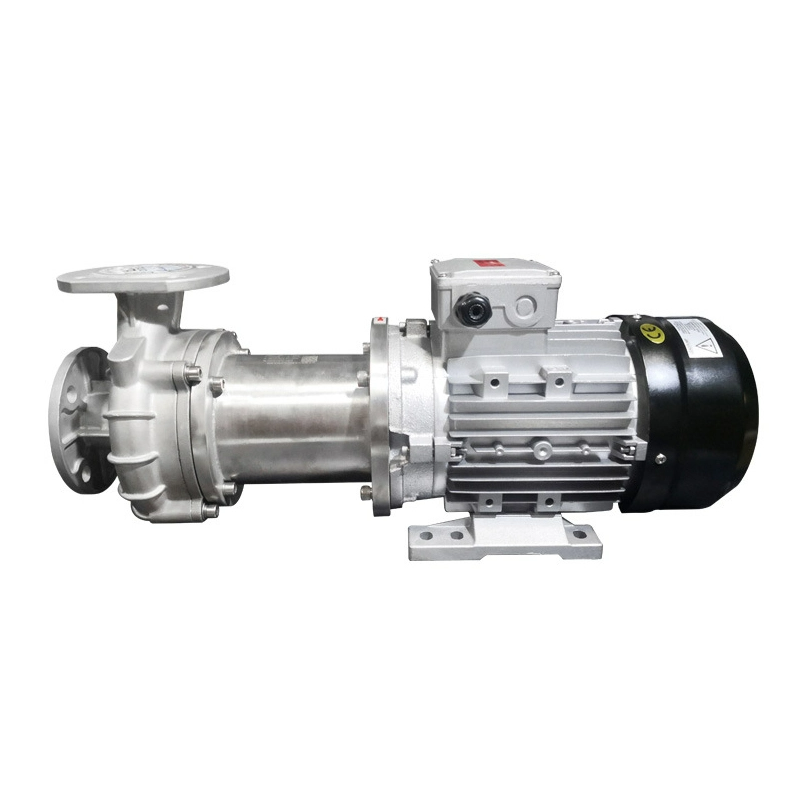

Sealless magnetic drive pumps solve mechanical friction through an elegant "invisible handshake." Torque transfers completely via a magnetic field. The outer drive connects directly to the motor. The inner rotor connects to the pump impeller. A stationary containment shell sits securely between them. When the motor spins the outer magnets, the magnetic field easily penetrates the stationary shell. The inner rotor exactly mirrors this rotation. No physical shaft ever pierces the pump casing.
Transferring power through a solid barrier introduces a specific technical hurdle. Magnetic fields passing through standard metal enclosures generate eddy currents. These electrical currents create intense, rapid heat. Heat represents the ultimate enemy of liquefied natural gas. Even minor temperature spikes cause rapid boil-off gas (BOG) expansion and severe impeller cavitation.
Modern engineering brilliantly solves this thermal challenge. Advanced LNG Magnetic Pump designs utilize composite or industrial ceramic containment shells. Because these advanced materials lack electrical conductivity, they completely eliminate eddy current losses. The cryogenic fluid remains highly stable and sub-cooled throughout the entire transfer process.
Surviving deep freezes requires exceptional material science. Pump casings utilize specialized cryogenic alloys, primarily austenitic 316L stainless steel. This alloy prevents dangerous metal embrittlement and maintains superior fracture toughness at -162°C. Additionally, the internal drive mechanism requires highly stable neodymium or samarium-cobalt magnets. These rare-earth elements maintain maximum flux density at sub-zero temperatures, ensuring the invisible handshake never slips.
Facility managers must evaluate pump upgrades across several operational dimensions. Sealless architecture radically improves performance across the board.
Achieving 100% leak-free operation remains the highest priority for plant safety. Eliminating the dynamic shaft seal protects personnel from severe frostbite and chemical exposure. It directly neutralizes asphyxiation risks in enclosed spaces. Furthermore, preventing fugitive vapor emissions eliminates explosive atmospheres, ensuring you effortlessly meet strict environmental and workplace safety regulations.
The magnetic drive framework offers incredible versatility. You can scale this architecture far beyond standard LNG applications. Facilities routinely adapt these systems for various industrial gases. A well-designed mag-drive unit functions flawlessly as a heavy-duty Liquid Nitrogen Pump. Operators also deploy them as a high-pressure Liquid CO2 Pump. This cross-compatibility allows procurement teams to standardize equipment across different operational zones.
Cryogenic tanks occasionally run low. Liquid gas can abruptly flash to vapor in the suction line. Traditional pumps burn up almost immediately under these dry-running conditions. Conversely, advanced magnetic drive units utilize specialized internal bearings. Self-lubricating graphite and carbon-composite sleeve designs easily survive transient dry-running episodes. They protect your expensive capital assets during unpredictable liquid supply disruptions.
Mechanical seals generate continuous physical friction. This friction produces harmonic vibration and excessive operational noise. Removing the mechanical seal removes the primary source of shaft interference. The magnetic pump runs much smoother and substantially quieter. Reduced vibration dramatically extends overall bearing life and protects surrounding pipework from stress fractures.
Shifting your facility to sealless technology requires a clear financial perspective. You must weigh the upfront procurement realities against long-term operational savings.
Capital Expenditure (CapEx): Magnetic drive pumps typically present a higher initial procurement cost compared to standard direct-drive pumps. You are purchasing premium rare-earth magnets, precision-engineered ceramic containment shells, and specialized cryogenic alloys.
Operational Expenditure (OpEx) Realities: The financial advantage materializes rapidly during daily operations. You experience several immediate cost reductions:
You eliminate the enormous energy costs associated with running external cooling and flush systems.
You erase the recurring material and labor costs of replacing mechanical seals and dynamic O-rings.
You gain higher overall motor efficiency due to minimized mechanical friction along the drive shaft.
For continuous-duty transfer operations or remote, unmanned facilities, the financial math heavily favors mag-drive architecture. You achieve rapid return on investment by nearly eliminating preventative mechanical maintenance.
Feature / Financial Metric | Mechanical Seal Pump | Magnetic Drive Pump |
|---|---|---|
Leakage Risk | High (Expected over time) | Zero (Hermetically sealed) |
Routine Maintenance | Frequent seal replacements | Minimal (Predictive only) |
Auxiliary Systems | Requires complex seal flush plans | None required |
Energy Efficiency | High friction losses | High (No seal friction) |
Long-term ROI | Lower (High recurring costs) | Excellent (OpEx savings) |
The maritime industry is undergoing a massive macro trend alignment. Global shipping fleets are rapidly shifting toward alternative fuels like LNG, methanol, and green ammonia. This transition demands absolute zero-leak bunkering and transfer protocols. Magnetic propulsion provides the exact engineering foundation required for this global shift.
Ship decks and marine engine rooms offer strictly limited real estate. Direct-coupled, sealless designs save critical space. By entirely removing bulky auxiliary support skids and external flush tanks, shipbuilders can optimize engine room layouts. This compact footprint proves invaluable for retrofitting older vessels for modern green fuels.
Modern sealless pumps do not operate blindly. Manufacturers now retrofit them with advanced predictive maintenance sensors. These IoT integrations constantly monitor casing vibration, internal temperature, and magnetic flux density. They feed real-time data back to the central control room. Operators can easily predict rare "decoupling" events long before they impact the transfer process.
Facility managers must recognize specific implementation risks. Procurement teams must accurately calculate fluid density and viscosity variables before ordering equipment. Overloading a mag-drive unit beyond its maximum magnetic torque limit results in decoupling. During a decoupling event, the motor continues to spin, but the internal impeller completely stops. Proper initial sizing remains critical. You must work closely with application engineers to match your system's exact pressure and flow requirements to the correct magnetic coupling strength.
Upgrading your facility to utilize sealless technology marks a fundamental operational shift. You move away from reactive, constant seal maintenance toward proactive, absolute fluid containment. When you eliminate the mechanical seal, you eliminate the primary cause of cryogenic transfer failures.
Your decision matrix remains straightforward. If your facility prioritizes complete vapor containment, strict thermal management, and drastically reduced operator intervention, sealless magnetic propulsion offers the most mathematically and structurally sound choice. It protects your personnel, your environment, and your operational budget simultaneously.
Take proactive steps today. Consult with a specialized cryogenic pump engineer. Audit your current fluid properties, maximum system pressure limits, and exact spatial constraints. A customized engineering assessment will provide you with a clear roadmap for upgrading your fluid transfer infrastructure.
A: Yes, provided the pump uses cryogenically rated rare-earth magnets and thermally stable alloys designed to prevent embrittlement. Engineers specifically select neodymium and samarium-cobalt blends because they maintain exceptional flux density and structural integrity at -162°C and below.
A: Decoupling occurs when the required torque exceeds the magnetic strength, usually due to a system blockage or extreme fluid density shift. The motor spins, but the impeller stops. Advanced systems use IoT power monitors to instantly trip the motor to prevent demagnetization or damage.
A: No. Unlike dynamic seals that require constant barrier fluids, magnetic drive pumps utilize the transferred cryogenic liquid itself for internal circulation and bearing cooling. They function entirely in a fully closed loop, saving massive amounts of installation space.
