Advanced LNG Fueling Stations for Global Energy
Discover the Future of Energy with Our Advanced LNG Fueling Stations designed for efficiency and innovation. Experience state-of-the-art technology that enhances operational performance and environmental sustainability. Elevate your business with our tailored solutions that meet the highest industry standards.
LNG Fueling Stations for Global Energy Infrastructure

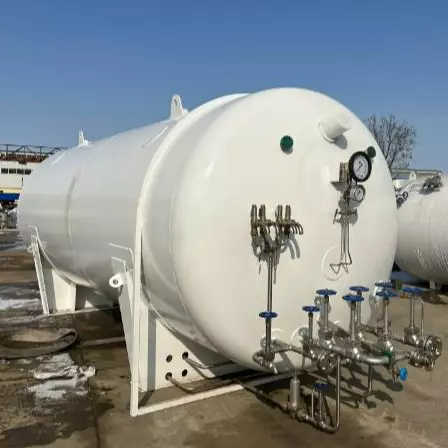

1. Ecotec LNG Cryogenic Storage Tank
Available Capacities: 20 m³, 30 m³, 60 m³
Function: Safe, vacuum-insulated storage of liquefied natural gas under cryogenic conditions.
Ideal For: Heavy-duty trucking fleets, industrial facilities, ports, and mining operations.
2. Ecotec LNG Dispenser
Function: Precise, high-speed dispensing of LNG directly to vehicles, with advanced metering technology to minimize losses from evaporation or spillage.
Ideal For: Commercial fleets, public transportation operators, and highway fueling stations.
3. Ecotec LNG Pump & Pumping Skid
Function: Transfers LNG from the storage tank to the dispenser reliably and efficiently; the skid-mounted design enables rapid installation and easy relocation.
Ideal For: Stations requiring compact, integrated pump systems with minimal site preparation.
4. Ecotec LNG Vaporizer
Function: Converts liquefied natural gas into gaseous form for downstream use, supporting both fueling and industrial gas supply applications.
Ideal For: Industrial end-users and facilities requiring gasified natural gas supply.
Product Name
Tatsuno fuel dispenser
Ambient temperature
-25℃~+55℃
Humidity
≤90%
Flow rate
5~40L/min to 5~220L/min
Nozzle
Auto. shut-off
Suction distance
6m(vertical),50m(horizontal)
Accuracy
±0.30%
Repeating tolerance
≤0.15%
Hose
3m(low hang),4.5m(high hang),as customized
Inlet pressure
≥54KPa
Outlet pressure
≤0.3MPa
Voltage
220V/380V(50/60Hz)
Power
1HP(0.75Kw)
Noise
≤80dB(A class)
Unit price range
0.01~999.99
Single volume range
0.01~999999.99
Accumulative volume range
0.01~9999999999.99
Explosion-proof signal
ExdmbIIAT3
Other attributes
Place of OriginZhejiang, China
Application
Oil Station
Usage
Oil Filling
Type
Fuel dispenser
Brand Name
Ecotec
Model Number
HL244
Working Voltage
110V/220V/380V
Flow Rate
55±5
Warranty
12 MONTHS
Certificate
ISO
Flow rate (L/min.)
55±5
Inlet Pressure
≥54kPa.
Suction Distance (m)
6(vertical meter) / 50(horizontal meter)
Type
Optional
Accuracy
0.2%
Voltage(V)
110V/220V/380V,50Hz/60Hz
Capacity(hp)
1HP(0.75kw)
Input Voltage
110V/220V/380V50Hz/60Hz
Nozzle
Auto Shut-off Nozzle
Environmental Condition
-40C+55C
Packaging and delivery
Packaging DetailsStandard Carton or Wooden for transportation
Port
ningbo
Supply Ability
Supply Ability1000 Piece/Pieces per Day
Product Name
Tatsuno fuel dispenser
Ambient temperature
-25℃~+55℃
Humidity
≤90%
Flow rate
5~40L/min to 5~220L/min
Nozzle
Auto. shut-off
Suction distance
6m(vertical),50m(horizontal)
Accuracy
±0.30%
Repeating tolerance
≤0.15%
Hose
3m(low hang),4.5m(high hang),as customized
Inlet pressure
≥54KPa
Outlet pressure
≤0.3MPa
Voltage
220V/380V(50/60Hz)
Power
1HP(0.75Kw)
Noise
≤80dB(A class)
Unit price range
0.01~999.99
Single volume range
0.01~999999.99
Accumulative volume range
0.01~9999999999.99
Explosion-proof signal
ExdmbIIAT3
Model Number
Fuel Dispenser
place of origin
Zhejiang, China
brand name
Ecotec
Product name
Fuel Dispenser
Flow rate
5-55L/MIN
Nozzle Number
1 Nozzle
Meter
1 x Tatsuno Meter
Pump
1 x Tatsuno Pump
Motor
220V 50hz
Hose
3/4 inch 4 meter long
Screen
Smart Touch Screen
Weight
240KG
Package
Wooden box or Carton
Type
dispensers
Material
Metal
Accuracy
±0.3%
Nozzle
2nozzles
Power
1.1 kW
Warranty
1 year
pump
self-priming
Place of Origin
Zhejiang, China
Brand Name
Ecotec
Model Number
BG224
Working Voltage
110V/220V/380V
Flow Rate
5lpm-120lpm
Certificate
ATEX OIML
Meter
2 X Tatsuno Meter
Nozzle
2 X Opw Nozzle 3/4 Inch
Display
4 X Display
Hose
2 X Rubber Hose Reinbrassed
Pump
2 X Tatsuno Pump
Solenoid Valve
2 Stage
Specification
1020x450x2050mm
Humidity
≤95%
Transport Package
Standard Export Package
Production Capacity
5000
Usage: Oil Filling
Working Voltage: 220V
Flow Rate: 45L/m
Warranty: 1year
Logo: Customized Logo
Material: Aluminum Alloy
Oil type: Oil Gasoline Diesel Petrol
Pump: Tatsuno pump
in door, out door
Model Number
FUELPLUS-30L-380V-S
place of origin
Zhejiang, China
brand name
ecotec
Power
750 W, 2.2kw
Voltage
12 V, 24 V, 380 V, 220V/380V, 240 V
Material
Stainless Steel, Iron, Metal
Power Supply
110V/220V/380V, 50/60Hz
Design Life
10 years
Warrantee
2 Years for Main Parts
Pump
1-4 pump
Nozzle
1-8 Nozzle
Flow meter
1-8 Flow meter
Standard / Certificates
Atex, OIML Certificates
Solenoid Valve
3/4 inch
Type
tokheim fuel dispenser
AdBlue Dispensers P111
Config:
1 x ADblue Pump with motor(SS)
1 x ADblue meter ( SS)
1 x ADblue stainless Nozzle, 3/4inch NPT
1 x Solenoid valve, Flange
1 x Electronic controller WA112,
1 x Keyboard
1 x Display board
Parameter:
MAX Flow: 50L/min
Working Temp: -5 /50+
Working Pressure: 3.5bar
Rated voltage 230V
Package:
Wooden Case
Dimension: 64*48*148cm
Weight:120 KGS
Unmatched Efficiency & Reliability in LNG Fueling
Experience the forefront of fuel technology with our LNG Fueling Stations. Our cutting-edge solutions deliver unparalleled efficiency and reliability, ensuring your operations run smoothly and economically.
Advanced LNG Transfer
Innovative Insulation Design
Smart Control Systems
Cost-Effective & Eco-Friendly
Technical Specifications for LNG Fueling Stations
LNG fueling stations are designed to meet the highest standards of efficiency and safety, providing a robust solution for the growing demand for liquefied natural gas. Below is a comprehensive overview of key technical specifications that define the performance of our LNG fueling stations:
| Parameter | Specification / Standard | Description |
| Working Pressure Range | 0.1 – 1.6 MPa | Safe operating pressure range for LNG dispensing systems. |
| Refueling Capacity | Up to 120 L/min per nozzle | High-speed refueling to minimize vehicle downtime. |
| Storage Capacity | 20 m³, 30 m³, 60 m³ (customizable) | Multiple tank volume options to suit different site requirements. |
| Operating Temperature | ≤ −162°C (cryogenic) | Designed for cryogenic conditions; all components rated for LNG service. |
| Metering Accuracy | ±0.5% | Precision fuel dispensing in compliance with industry standards. |
| Power Supply Requirements | 380V, 50Hz | Standard electrical supply for industrial installation. |
| Explosion Protection Rating | Ex d IIB T4 | Certified for safe operation in hazardous (Zone 1/Zone 2) environments. |
| Control System Type | PLC-Based Automation | Fully automated control for optimal performance, monitoring, and safety management. |
Industries We Serve with LNG Solutions
LNG Fueling Stations are revolutionizing multiple sectors by providing cleaner and more efficient energy solutions. Below are key industries that benefit from our LNG applications:
Heavy-Duty Trucking
LNG is ideal for long-haul transportation. It significantly lowers fuel costs while minimizing emissions, making it a sustainable choice for fleet operators.
Marine Applications
LNG is increasingly adopted for ship propulsion, providing a cleaner alternative to traditional marine fuels. This shift not only cuts emissions but also meets international safety standards.
Why Choose Us
At Ecotec, we are committed to delivering top-tier LNG fueling station solutions that build trust through our expertise.
Innovative Technology Development
Our dedicated R&D team continuously pushes the boundaries of technology, ensuring that we remain at the forefront of the LNG fueling industry.
Scalable Production Capabilities
With advanced manufacturing processes, we achieve high-volume production, enabling us to meet the diverse needs of our clients efficiently.
Proven Industry Impact
Our commitment to innovation is underscored by numerous patents and significant projects that demonstrate our leadership in LNG applications.
Trust Ecotec for your LNG fueling station needs and experience unrivaled quality and service.
Contact us now for a quote!
FAQ
Can Ecotec provide a complete turnkey LNG fueling station solution, or only individual equipment?
A: Ecotec offers a full turnkey package covering every stage of your project — from initial site assessment and system design (including 2D and 3D drawings for confirmation) through manufacturing, delivery, installation, commissioning, and after-sales support. Whether you need a single LNG dispenser or a complete containerized LNG fueling station, we tailor the solution to your site conditions, energy demand, and local regulatory requirements.
What storage capacity options are available, and can the system be customized for our specific throughput requirements?
Which international markets has Ecotec supplied LNG fueling stations to, and do you have experience with local compliance requirements?
What quality assurance process does Ecotec follow during manufacturing, and what warranty is provided?
How long does it take from order confirmation to delivery, and what shipping terms do you support?
