XP224
| Quantity: | |
|---|---|

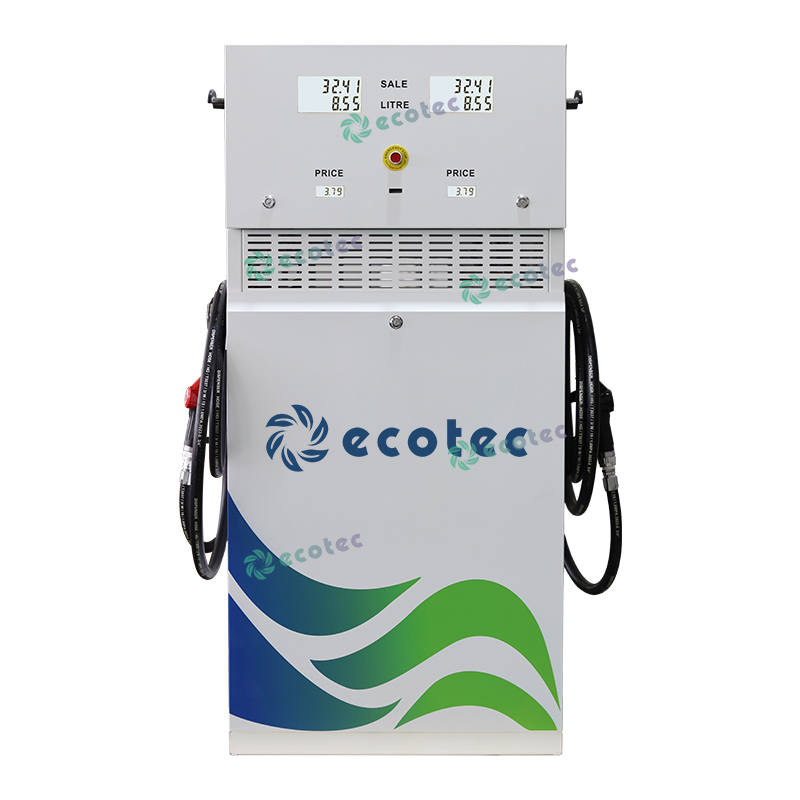

Fuel Dispenser XP224
2 x Flow meter Tatsuno type, FM4B without seal
2 x Pulser CK-11
2 x Solenoid Valve MSF-20
2 x Tatsuno Nozzle boot on the side
2 x E-stop
2 x TD-20A,3/4
2 x Black Hose/w couplings and breakaway valve 4.5M
1 x Electronic controller B224
2 x Metal keyboards K13,
4 x display boards X110, 886 digits, with RS485
painting body, Package: Carton
1x Solar Panel
Ecotec design and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all
Owner and User
Fuel dispenser J series is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all
Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function,
Suitable for single nozzle to 8 nozzle
Suitable for both suction and submersible
Suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser
Suitable for regular flow rate and high flow rate
Option with TV, LED, Printer, Bank Card reader etc

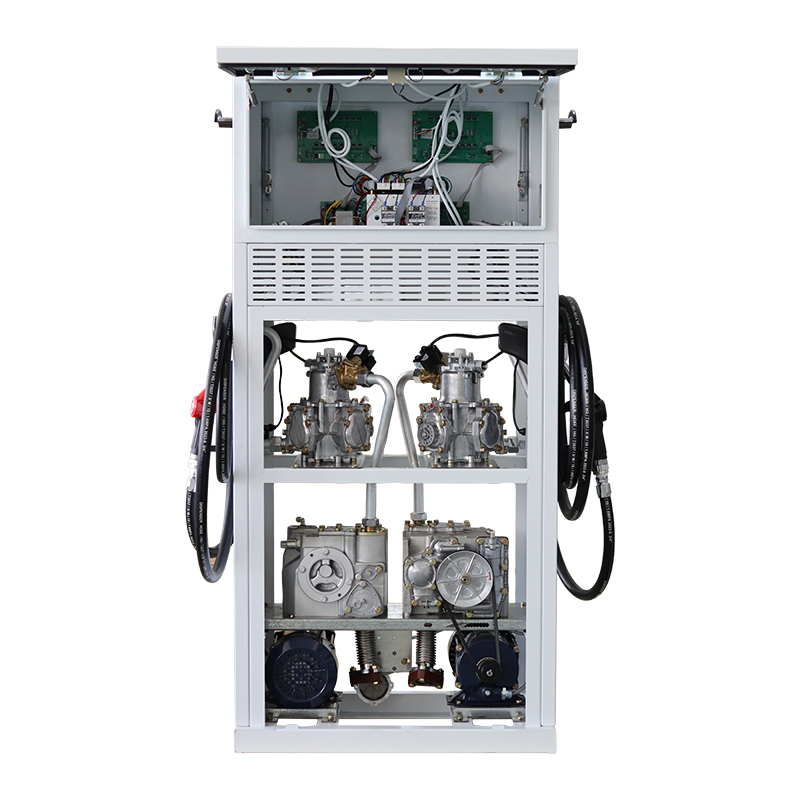

Components with best cost performance
UL Listed motor Tatsuno Gear Pump Tatsuno Meter
Using the best motor from China which have both ATEX and UL listed, single phase, three phase available
Using the best Pump made in China, Tatsuno Gear Type inbuilt with Air separator, two stage of filter and bypass valve to adjust the pressure, water and ethanol resistant
Using the best Flow meter made in China, 4 Piston type provides safe refueling environment without deterioration in performance for a long period of time, also water and ethanol resistant
Flexible Function Design
Electronic Calibration available by preset keyboard and communication protocol
Long and short display value, Display sequence settable
Decimal position settable
Motor standby time adjustable to meet the different requirement
Fueling with integer, Ten bits, Hundred bit and Thousand bit
Re-display recall and settable
50 Filling record recall
Lock function, Lock by password, Lock by monthly control, Lock by remote control
Shift Record Printing
Ticket content settable, such as station name, address, products
Continue last interrupted fueling after power resume
Different Password control
Error Code to indicate the problem of dispenser
Integration with ITL, PTS, DOMS, Fusion
Specification:
| Pump | Type | Optional |
| Inlet Pressure | ≥54kPa. | |
| Flow rate (L/min. ) | 55±5 | |
| Suction Distance (m) | 6(vertical meter) / 50(horizontal meter) | |
| Flow Meter | Type | Optional |
| Accuracy | ±0.2% | |
| Motor | Voltage(V) | 110V/220V/380V, 50Hz/60Hz |
| Capacity(HP) | 1HP(0.75kw) | |
| Input Voltage | 110V/220V/380V, 50Hz/60Hz | |
| Nozzle | Auto Shut-off Nozzle | |
| Environmental Condition | -40ºC~~+55ºC | |
| Control Type | Solenoid Vale Control Type | |
| Preset | Function Provided(Small LCD Indicator) | |
| Display(Counter) | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~999, 999(6 Digits), Decimal point can be changed | |
| Digit of Amount | 0~~999, 999(6 Digits), Decimal point can be changed | |
| Digit of Unit price | 0~~9999(4 Digits), Decimal point can be changed | |
| Digit of Total Range | 0~~99, 999, 999, 99 | |
| Optional Display | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |
| Digit of Amount | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |
| Digit of Unit price | 0~~999999(6 Digits), Decimal point can be changed | |
| Digit of Total Range | 0~~99, 999, 999, 99 | |
| Totalizer | 1~~9, 999, 999 | |
| Hose | 4.5m | |
| Weight | 250kg | |
| Dimension(L×W×H) | 1060*600*2200(mm) | |
| Dimension(L×W×H)Of Qty of Container | 40FT: 44 20FT: 22 | |
