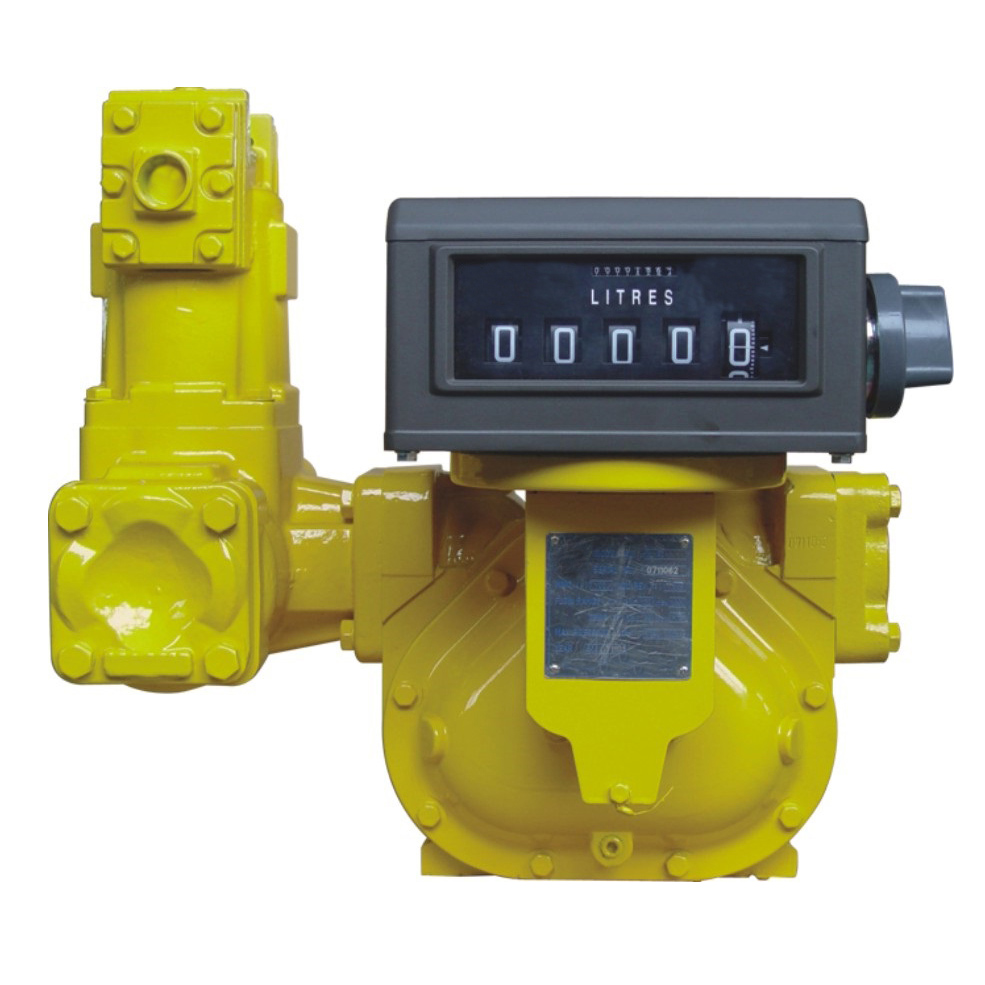

LC-M50
ECOTEC
| Quantity: | |
|---|---|
Product Information
Diameter:50mm/2"
Flow Range:38-380L/Min
Volume/Rev.:0.681L
Max.Pressure:10Bar
Accuracy:±0.2%
Repeatability:≤0.05%
Viscosity:30SSU-1,500,000SSU
Measurement:Liter or Gallon
Meter Body:Aluminum
Strainer Mesh: 60Mesh
End Connection:Flange, NPT or BSPT etc.
Built-in precision totalizer accumulating to
99,999,999 units,Delivery display 5 digital
Gross Weight:50Kgs
Packaging Size:53*58*53cm
Advantage:
Excellent stepless adjusting me chanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction.
Characteristics:
Excellent stepless adjusting mechanism allows a micro adjustment on the meter;
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;
Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
Low pressure loss, a true gravity flow meter;
Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
| Technical Performance | |||||
| Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 |
| Size | 40mm / 1" | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " | 150mm / 6 "and 100mm / 4 " for option |
| Flow Range | 25-250L/min | 55-550L/min | 115-1150L/min | 170-1700L/min | 300-3000L/min |
| Volume Per Revolution | 0.309L | 0.681L | 1.839L | 5.102L | 14.87L |
| Max.Pressure | 10Bar | ||||
| Accuracy | ±0.2% | ||||
| Repeatability | ≤0.07% | ||||
| Standard Measurement | Liter / US Gallon /IMP Gallon | ||||
| Dimension | 51×46×49cm | 51×46×49cm | 58×50×61cm | 76×64×72cm | 80×65×79cm |
| Net Weight | 23kg | 26kg | 40kg | 70kg | 130kg |
| Gross eight | 25kg | 28kg | 47kg | 93kg | 180kg |
| Package | 1pc/Strong Yellow Paper Carton | 1pc/Wooden Case | |||
Note:4"&6" flange available for M-150/6" Meter.
Construction:
Application:
Refined petroleum products; A wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,. Aviation gasolines and jet fuels;
Treated waters (deionized, demineralized, and potable);
Chlorinated solvents and general solvent metering;
Acid pH liquids;
Liquefied petroleum gas(LPG);
Crude oil, also for heated and/or viscous liquids;
Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;
Herbicide;
Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids
Abrasive liquids
Industries:
Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ; Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine; Paint and varnish; Petroleum marketing; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper; Refining commercial Solvents; Recycling Railroad ; Textile.
