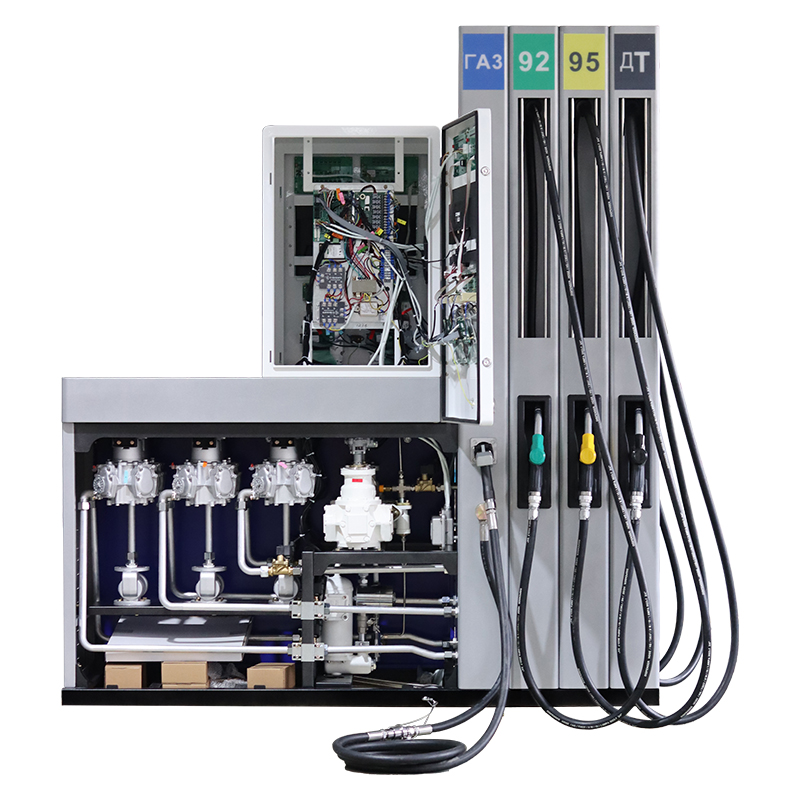

FUEL DISPENSER +LPG DISPENSER
ECOTEC
| Quantity: | |
|---|---|
Using the best motor from China which have both ATEX and UL listed, single phase, three phase available
Using the best Pump made in China, Tatsuno Gear Type inbuilt with Air separator, two stage of filter and bypass valve to adjust the pressure, water and ethanol resistant
Using the best Flow meter made in China, 4 Piston type provides safe refueling environment without deterioration in performance for a long period of time, also water and ethanol resistant
Flexible Function Design
Electronic Calibration available by preset keyboard and communication protocol
Long and short display value, Display sequence settable
Decimal position settable
Motor standby time adjustable to meet the different requirement
Fueling with integer, Ten bits, Hundred bit and Thousand bit
Re-display recall and settable
50 Filling record recall
Lock function, Lock by password, Lock by monthly control, Lock by remote control
Shift Record Printing
Ticket content settable, such as station name, address, products
Continue last interrupted fueling after power resume
Different Password control
Error Code to indicate the problem of dispenser
Integration with ITL, PTS, DOMS, Fusion
Model List
| Dispenser | Model | Product/ Pump | Flow Meter/ Nozzle/Hose | Display | Flow rate LPM |
| Suction type | A112S | 1 | 1 | 2 | 50L/M |
| A122S | 1 | 1 | 2 | 45L/M | |
| A224S | 2 | 2 | 4 | 50L/M | |
| Remote /Submersible type | A112R | 1 | 1 | 2 | 50L/M |
| A122R | 1 | 1 | 2 | 45L/M | |
| A224R | 2 | 2 | 4 | 50L/M |
Specification:
| Pump | Type | Optional |
| Inlet Pressure | ≥54kPa. | |
| Flow rate (L/min. ) | 55±5 | |
| Suction Distance (m) | 6(vertical meter) / 50(horizontal meter) | |
| Flow Meter | Type | Optional |
| Accuracy | ±0.2% | |
| Motor | Voltage(V) | 110V/220V/380V, 50Hz/60Hz |
| Capacity(HP) | 1HP(0.75kw) | |
| Input Voltage | 110V/220V/380V, 50Hz/60Hz | |
| Nozzle | Auto Shut-off Nozzle | |
| Environmental Condition | -40ºC~~+55ºC | |
| Control Type | Solenoid Vale Control Type | |
| Preset | Function Provided(Small LCD Indicator) | |
| Display(Counter) | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~999, 999(6 Digits), Decimal point can be changed | |
| Digit of Amount | 0~~999, 999(6 Digits), Decimal point can be changed | |
| Digit of Unit price | 0~~9999(4 Digits), Decimal point can be changed | |
| Digit of Total Range | 0~~99, 999, 999, 99 | |
| Optional Display | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |
| Digit of Amount | 0~~99, 999, 999(8 Digits), Decimal point can be changed | |
| Digit of Unit price | 0~~999999(6 Digits), Decimal point can be changed | |
| Digit of Total Range | 0~~99, 999, 999, 99 | |
| Totalizer | 1~~9, 999, 999 | |
| Hose | 4.5m | |
| Weight | 250kg | |
| Dimension(L×W×H) | 1060*600*2200(mm) | |
| Dimension(L×W×H)Of Qty of Container | 40FT: 44 20FT: 22 | |
