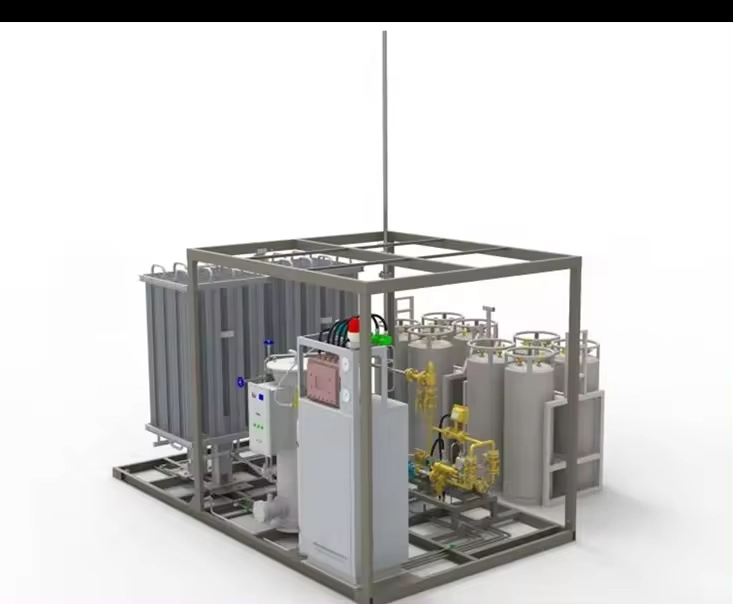

Unplanned Cryogenic Pump failure doesn't just halt fluid transfer in your facility. It cascades rapidly into system-wide downtime, product boil-off, and massive safety risks. Traditional reactive maintenance is no longer financially sustainable. You cannot rely on "fix-it-when-it-breaks" methods for handling volatile fluids like LNG or Liquid CO2. Extreme temperature differentials demand highly predictive, data-driven protocols. Your maintenance strategy must evolve to prevent catastrophic breakdowns before they happen.
This article provides engineers and facility managers with a decisive, decision-stage framework. You will learn how to audit your current maintenance standard operating procedures (SOPs). We will help you identify early failure warning signs in your fluid transfer systems. You will also discover how to evaluate exactly when you should service existing equipment versus when you must upgrade it. Implementing these strategies protects your facility, ensures continuous operations, and safeguards your bottom line.
Monitor NPSH Constantly: Cavitation is the leading cause of impeller damage; ensuring your Net Positive Suction Head available (NPSHa) exceeds required limits (NPSHr) prevents premature failure.
Prioritize Thermal Cycling Management: Frequent starts/stops accelerate material fatigue. Strict cool-down protocols and leak testing are non-negotiable.
Moisture is the Enemy: Purging systems to a dew point below -60°C (or H2O < 10 ppm) before startup prevents ice formation and seal destruction.
Evaluate Upgrades Over Band-Aids: For recurring mechanical seal failures, transitioning to seal-less architectures often yields a much lower long-term financial burden.
Failing to maintain extreme-temperature pumps triggers severe financial consequences. The systemic impact of facility downtime goes far beyond the repair bill. When a pump goes offline unexpectedly, you immediately face outgassing issues. Ambient heat infiltrates the compromised system. This causes expensive liquefied product to boil off into gas. You also incur massive labor costs. Maintenance crews must perform continuous vacuum pump-downs to restore jacket integrity. Every hour of downtime bleeds revenue from your operation.
Thermal fatigue realities make maintenance even more critical. Cryogenic fluids operate at punishing temperatures. LNG flows at -162°C. Liquid hydrogen drops to -253°C. These extremes cause aggressive material expansion and contraction during every operational cycle. If you leave this thermal cycling unmanaged, you invite microscopic seal erosion. Tiny leaks eventually trigger catastrophic valve and pump housing failures. You cannot ignore the physics of metal fatigue.
Furthermore, neglected equipment escalates your safety and compliance risks. Industrial fluid transfer requires strict adherence to environmental regulations. Poor maintenance quickly compromises your ISO 15848 zero-leakage certifications. A degraded seal transforms a minor mechanical issue into a severe workplace safety hazard. Toxic or highly flammable gas leaks threaten personnel and invite heavy regulatory fines. Proactive maintenance is your only defense against these cascading failures.
You cannot use a generic maintenance checklist for every fluid. Different gases require distinct handling procedures and hardware configurations. You must tailor your daily protocols to the exact technology operating on your floor.
Handling phase changes is the top priority for a Liquid Nitrogen Pump or a Liquid CO2 Pump. Carbon dioxide applications present a unique chemical threat. You must ensure absolute moisture elimination within the system. If even trace amounts of water mix with CO2, carbonic acid forms. This acid aggressively corrodes internal pump components. Additionally, pressure drops can cause rapid dry ice formation. Solid CO2 particles will physically destroy a spinning impeller in seconds.
For hazardous or high-value transfers, an LNG Magnetic Pump provides a high-reliability alternative. These units eliminate dynamic mechanical seals entirely. This design fundamentally changes your maintenance focus. You no longer waste hours replacing worn shaft seals. Instead, your team shifts to continuous condition monitoring. You must track thrust balancing and rotor dynamics. You also need to verify magnetic coupling integrity regularly. This seal-less approach drastically reduces unexpected leak events.
Cryogenic reciprocating pumps operate differently. They use positive displacement to achieve very high discharge pressures. Your maintenance focus here must target friction points. You must monitor piston ring wear constantly. Drive-end oil contamination is another frequent failure mode. You must strictly adhere to recommended hours-based replacement schedules. Replacing packing materials and soft seals on time prevents sudden pressure losses.
You must detect component degradation before the hardware physically breaks. Implementing these three predictive diagnostics will save your facility from unplanned outages.
Cavitation is a silent killer of impellers until it becomes audible. You must catch it early.
Symptom: You will hear a distinct sound resembling gravel or marbles tumbling inside the pump casing.
Cause: Your available suction head (NPSHa) drops below the required threshold (NPSHr). This pressure drop causes vapor bubbles to form and violently implode against the metal.
Diagnostic action: Implement real-time vibration signature analysis. This software detects sub-surface rotor imbalances. It warns you of cavitation long before a shaft snapping event occurs.
Submerged motors face harsh operating environments. Electrical shorts are a constant threat.
Symptom: You notice unexpected power draw fluctuations or general motor degradation in submerged units.
Diagnostic action: Require the regular use of a megohmmeter. This tool tests stator insulation resistance accurately. Coastal facilities face higher risks. Salt-fog easily penetrates external housings and accelerates electrical corrosion. Monitor these specific setups weekly.
Loss of vacuum insulation destroys your system's thermal efficiency.
Symptom: You spot frost accumulation on the outer jacket or experience higher-than-normal boil-off rates.
Diagnostic action: Conduct a Helium mass spectrometer leak test bi-annually. You must monitor shielding temperatures continuously. Ensure your vacuum levels maintain 10^-4 mBar or better in all vacuum-jacketed lines. This prevents heat leak and stabilizes your fluid phases.
Below is a summary chart of these diagnostic protocols:
Diagnostic Method | Target Component | Testing Frequency | Critical Threshold |
|---|---|---|---|
Vibration Analysis | Impeller / Rotor | Continuous / Real-time | NPSHa must exceed NPSHr |
Megohmmeter Test | Motor Stator | Monthly | Consistent insulation resistance |
Helium Mass Spec | Vacuum Jacket | Bi-annually | Vacuum ≤ 10^-4 mBar |
A rigorous SOP is your best defense against premature wear. You must train your operators to respect the physical limits of extreme-cold equipment.
You must never dry-run extreme-temperature equipment. Running dry destroys internal bearings instantly. Before you introduce any cold liquid, you must mandate a strict nitrogen purge protocol. Warm, dry nitrogen pushes ambient air out of the system. You must target a system dew point below -60°C. You also need to verify the internal moisture content is less than 10 ppm. Skipping this step guarantees ice formation. Ice destroys soft seals and seizes rotating parts.
Rushing the cooling phase destroys metal housings. You must establish standard baseline cool-down times for all operators to follow.
Initiate a slow liquid bleed into the pump casing.
Monitor the exhaust gas temperature continuously.
Allow 1.5 to 2 hours for the equipment mass to reach operational temperature.
Verify that the casing has stopped contracting before starting the motor.
Following this timeline prevents severe thermal shock. It also stops PTFE and PCTFE soft seals from cracking under sudden stress.
Do not neglect the warm components of your system. Schedule preventative oil and filter changes for all external gearboxes and drive compressors. Dirty oil destroys external bearings quickly. Furthermore, operators must perform daily visual checks across the facility. Look for icing on non-insulated piping sections. Frost on a vacuum jacket indicates an underlying insulation failure. You must schedule immediate vacuum recovery if you spot unexpected ice.
Routine Environmental Checklist | ||
Inspection Area | What to Look For | Action Required if Failed |
|---|---|---|
External Casing | Unexpected frost or heavy ice build-up | Check vacuum integrity; initiate pump-down |
Drive Gearbox | Discolored oil in the sight glass | Halt operation; replace oil and filters |
Discharge Valve | Erratic pressure gauge readings | Check for cavitation; adjust flow rate |
Knowing when to stop repairing old equipment is crucial for your facility's profitability. You must analyze your long-term operational expenses objectively.
Consider a standard setup requiring frequent shaft seal replacements due to extreme thermal cycling. You pay for replacement parts constantly. You also pay for specialized labor. Most importantly, you lose revenue during every shutdown. Eventually, your cumulative maintenance costs and downtime losses quickly exceed the price of brand-new hardware. You must track these recurring expenses carefully. If your maintenance team works on the same unit every month, repairing it is no longer viable.
Sometimes a full replacement is unnecessary. You can resolve specific issues with targeted retrofits. If you face chronic cavitation problems, consider installing axial flow inducers. Inducers pre-pressurize the fluid before it hits the main impeller. This significantly lowers your NPSH requirement. It solves the gasification problem without forcing you to rebuild the entire tank infrastructure. Retrofitting saves time and capital while stabilizing your flow rates.
You must replace equipment when failure modes stem from inherent design limitations. Older mechanical seals frequently leak hazardous gases. You cannot fix a fundamental design flaw with more maintenance. Transitioning to a hermetically sealed magnetic drive architecture is the compliant, long-term solution. These advanced units eliminate dynamic seals entirely. They protect your workers and drastically reduce your annual maintenance hours.
Selecting the right replacement hardware requires strict vetting. You should shortlist manufacturers who offer robust predictive maintenance software. They must provide rapid parts availability for your specific region. Demand to see verifiable thermal-cycle endurance testing data. An excellent vendor proves their equipment survives thousands of extreme temperature shifts without degradation. Do not settle for unverified performance claims.
Effective extreme-temperature maintenance relies on predicting material behavior accurately. You must manage your suction pressure rigorously to stop cavitation. You must strictly enforce dry nitrogen purging and slow cool-down SOPs. You also need to monitor vibration signatures to catch early component wear. Moving from a reactive to a predictive mindset prevents catastrophic facility shutdowns.
Your next step is clear. Conduct a comprehensive preventative maintenance audit of your current fluid transfer systems this week. Identify which units consume the most repair labor. Consult with an engineering specialist to assess the return on investment for upgrading to seal-less technologies. Upgrading your weakest links will ensure safer, highly efficient operations for years to come.
A: It varies by mass and design, but typically ranges from 1 to 2 hours. You must allow the metal to contract slowly. Rushing this process causes severe thermal shock. Rapid cooling will permanently crack internal components and destroy your soft seals.
A: The most immediate physical signs are distinct rattling noises, sounding like marbles tumbling in the casing. You will also see erratic discharge pressure on your gauges. Real-time monitoring will show abnormal vibration spikes caused by vapor bubble implosion.
A: Systems must be purged with warm, dry nitrogen before operation. You must continue purging until the internal dew point drops below -60°C, or moisture reads under 10 ppm. This absolute dryness prevents internal icing and rapid carbonic acid wear.
A: Magnetic drive pumps eliminate dynamic mechanical seals entirely. This removes the primary source of leaks and maintenance downtime. They offer a hermetically sealed solution, making them ideal for hazardous, high-value, and zero-leakage fluid transfer applications.
