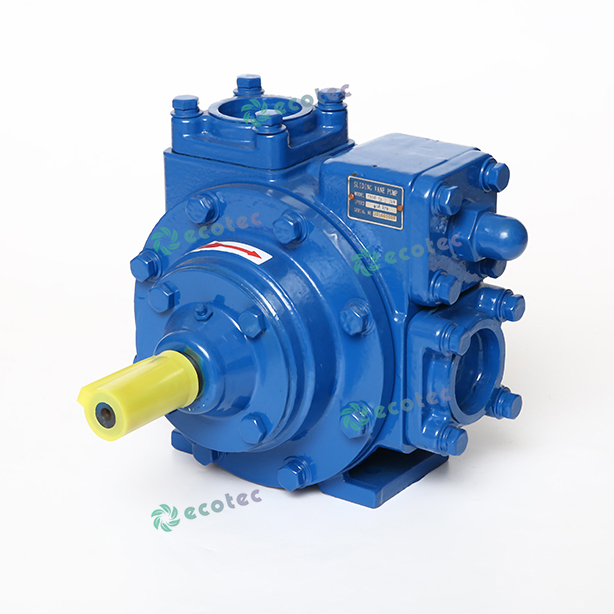

Selecting the right fuel pump mechanism is a strict balancing act. You must weigh throughput demands against upfront infrastructure expenses and long-term maintenance burdens. Whether outfitting a retail forecourt or an industrial commercial fleet terminal, precision matters. Under-specifying your equipment inevitably causes throughput bottlenecks. Customers face long wait times, and commercial fleets lose money. Conversely, over-specifying leads to wasted capital. It also causes premature wear on oversized components trying to operate below their ideal thresholds.
Our goal here is clear. We provide procurement and site engineering teams an evidence-based framework. You will learn how to evaluate internal pump mechanisms. We also cover essential dispenser components and crucial site compatibility factors. Proper alignment ensures operational efficiency and protects your equipment. By understanding the distinct needs of standard and high-flow systems, you can confidently architect a robust fueling environment.
Application Dictates Flow: Standard pumps (40–50 LPM) suit retail environments; high-flow configurations (80–160+ LPM) are strictly for heavy commercial/fleet applications to minimize vehicle downtime.
Component Synergy: A high-capacity pump requires corresponding upgrades to the flow meter, motor, and downstream fuel dispenser accessories to maintain accuracy and prevent system cavitation.
Infrastructure Reality: Upgrading to a high-flow system often exposes existing site bottlenecks, such as insufficient underground piping diameters or inadequate electrical supply.
Compliance is Non-Negotiable: Final selection must align with regional weights and measures, ATEX/UL safety ratings, and environmental (vapor recovery) standards.
The primary metric for fuel pump ROI is vehicle throughput versus the operational cost of the asset. You must define the core business problem before selecting hardware. Every site demands a specific fueling velocity. Failing to match this velocity leads to operational friction.
Standard applications primarily involve retail stations and light commercial sites. These locations focus on transaction accuracy and concurrent usage. They serve passenger vehicles possessing smaller tank capacities. Standard pumps dispense fuel at 40 to 50 liters per minute (LPM). This speed is optimal for standard cars. Attempting a high-flow dispense in a passenger vehicle causes immediate issues. The fluid velocity creates aggressive blowback. This triggers the nozzle's automatic shut-off prematurely. Customers experience frustration, and spills become a frequent environmental hazard.
High-flow applications serve industrial setups and heavy fleet terminals. These operations focus entirely on dispensing speed and continuous duty cycles. Industries like logistics, agriculture, and mining depend on rapid fueling. Time spent fueling directly impacts operational profitability. An 80 to 160 LPM system significantly reduces vehicle downtime. Heavy-duty trucks feature massive dual saddle tanks. Standard pumps take too long to fill them. High-flow mechanisms keep commercial fleets moving efficiently.
Engineers generally choose between two fundamental pump architectures. Each system interacts differently with site infrastructure.
Suction pumps serve as standalone dispensers. The pump and motor are housed directly inside the dispenser cabinet. They create a vacuum to pull fuel from the underground tank. This architecture works best for specific layouts. Sites requiring a short distance between the tank and dispenser benefit from suction setups. Maintenance teams can access the entire mechanism above ground.
However, suction systems have notable limitations. They are highly vulnerable to vapor lock over long piping runs. When distance increases, the vacuum breaks down. Suction systems also struggle to deliver true high-flow rates. They are typically limited to standard flow rates or dual-pump configurations. Sites requiring massive throughput usually abandon suction designs.
Submersible Turbine Pumps (STP) represent the alternative. The pump sits entirely submerged inside the fuel tank. It pushes fluid to multiple dispensers simultaneously. This creates positive head pressure throughout the piping network. The STP architecture is the industry standard for modern, multi-dispenser forecourts. It is also mandatory for true high-flow fleet operations.
Submersible advantages are substantial. Pushing fluid eliminates vapor lock entirely. It guarantees consistent head pressure across the site. A single high-capacity STP can easily serve multiple fueling points. This reduces the number of mechanical components failing above ground.
Specifying a pump goes beyond looking at maximum flow rates. You must evaluate the internal components driving the system.
Motor sizing and duty cycles demand close attention. You should evaluate motors based on continuous versus intermittent duty ratings. Retail sites often use intermittent-duty motors. Retail fueling features natural pauses between customers. Fleet operations operate differently. Heavy commercial setups require continuous-duty motors. These units feature robust thermal overload protection. This prevents failure during peak morning or evening fueling windows.
Accuracy depends heavily on internal measurement components. A pump is only as valuable as the flow meter measuring its output. The meter must handle the designated fluid volume without restricting velocity. High-velocity fluids induce severe mechanical stress on internal gears.
Flow Meter Technology Comparison
| Meter Type | Best Application | Pros | Cons |
|---|---|---|---|
| Piston Meters | Standard Retail (40-50 LPM) | Exceptional accuracy at low flow, long lifespan in retail. | Restricts fluid path in heavy industrial/high-flow setups. |
| Rotary/Gear Meters | High-Flow Fleet (80-160+ LPM) | Handles massive volume, minimal calibration drift over time. | Can lack extreme precision at very low trickle flow rates. |
Fluid compatibility serves as another crucial evaluation dimension. The transition to alternative fuels complicates pump selection. Internal seals, gaskets, and metallurgy must endure the intended fuel type. Standard diesel behaves differently than aggressive biofuels or ethanol blends. B20 or E85 blends can quickly degrade standard Buna-N rubber seals. You must verify chemical compatibility to prevent internal leaks.
System-wide sizing dictates true dispensing speeds. Upgrading a fuel pump to high-flow is redundant if downstream components restrict the fluid path. Every connector acts as a potential bottleneck.
Hoses and nozzles require immediate evaluation. High-flow setups require 1-inch hoses and heavy-duty nozzles. Standard 3/4-inch hardware will artificially cap flow rates. Forcing massive volume through a narrow hose creates friction loss. It forces the pump motor to work harder, reducing its lifespan. Fleet operators must install specialized wide-diameter hoses.
Filters and breakaways also demand careful selection. You must select specialized high-capacity fuel dispenser accessories. Standard particulate filters clog rapidly under high-flow volumes. A clogged filter creates severe backpressure. This causes strain on the pump motor and triggers bypass valves. Breakaway valves must handle increased line pressure. A standard breakaway might deploy accidentally under high-velocity spikes. Ensure all downstream accessories share the identical flow rating as your core pump.
Theoretical flow rates rarely match real-world output without proper site preparation. Site infrastructure often hides critical limitations.
Piping bottlenecks represent the most common failure in high-flow upgrades. Many operators ignore existing underground pipe diameters. Pushing 160 LPM through a 1.5-inch pipe leads to severe friction loss. The fluid velocity exceeds the pipe's natural capacity. This induces pump cavitation, where vapor bubbles form and collapse violently. Cavitation destroys pump impellers within months. True high-flow systems usually require 2-inch minimum underground piping.
Electrical load capacities often surprise site engineers. High-flow motors draw significantly more amperage. A standard 0.75 HP motor requires minimal power. A 2 HP continuous-duty motor demands a robust electrical supply. You must assess the site's electrical panel capacity before shortlisting equipment. Running high-draw motors on undersized breakers causes constant tripping.
Hydraulic shock presents a severe mechanical threat. Industry professionals call this water hammer. High-flow systems closing rapidly send shockwaves through the system. When a high-flow nozzle shuts off automatically, massive kinetic energy stops instantly. This pressure wave travels backward. It damages meters, joints, and internal valves. Ensure the pump and valves are engineered to dampen hydraulic shock effectively.
Procurement teams cannot finalize equipment without verifying regulatory compliance. Authorities mandate strict standards for hazardous environments.
Safety regulations dictate housing designs. Equipment must feature ATEX (Europe), UL (North America), or equivalent regional safety ratings. These ratings ensure explosion-proof electronics and secure motor housings. Operating non-certified equipment invites catastrophic liability.
Accuracy standards govern commercial transactions. Components must meet regional Weights and Measures standards. In the US, this means NTEP certification. In Europe, it requires MID approval. These certifications classify the equipment as legal-for-trade. Non-certified meters cannot legally sell fuel to the public.
You should apply a structured shortlisting framework. Following a logical sequence prevents costly procurement errors. Use these sequential steps for your project:
Audit existing site infrastructure thoroughly. Document tank depth, existing pipe diameters, and available electrical capacity.
Calculate required peak-hour throughput. Determine exactly how many vehicles must fuel simultaneously during the busiest hour.
Evaluate long-term asset viability. Factor in parts availability, warranty coverage, and expected maintenance intervals across the equipment lifecycle.
Request engineering spec sheets from vendors. Ignore marketing brochures. Demand performance curves showing targeted flow rates at specific head pressures.
Sourcing the correct fuel pump requires looking beyond stated maximum flow rates. It demands a holistic assessment of the dispenser's internal ecosystem. Every component must align with the site's operational reality. You must match the motor's duty cycle to the fleet's schedule. The flow meter's accuracy must support the required velocity. Finally, physical constraints like pipe diameter dictate the ultimate success of the installation.
Take proactive steps before finalizing your procurement. Prioritize vendors offering transparent engineering data and modular replacement parts. Seek out verifiable compliance documentation. Avoid manufacturers competing solely on upfront price. Proper equipment selection minimizes downtime, protects infrastructure, and keeps vehicles moving safely.
A: Rarely without extensive modification. High-flow requires a larger internal piping manifold, a higher-capacity flow meter, an upgraded motor, and 1-inch hoses. It is usually more cost-effective to replace the entire dispenser unit.
A: An undersized or mismatched flow meter acts as a mechanical bottleneck. It creates backpressure, reducing the pump's actual output and increasing wear on the motor.
A: A Submersible Turbine Pump (STP) paired with a high-flow dispenser (minimum 80-120 LPM), equipped with a continuous-duty motor, rotary flow meter, and 1-inch heavy-duty accessories to handle prolonged, high-volume fueling sessions.
