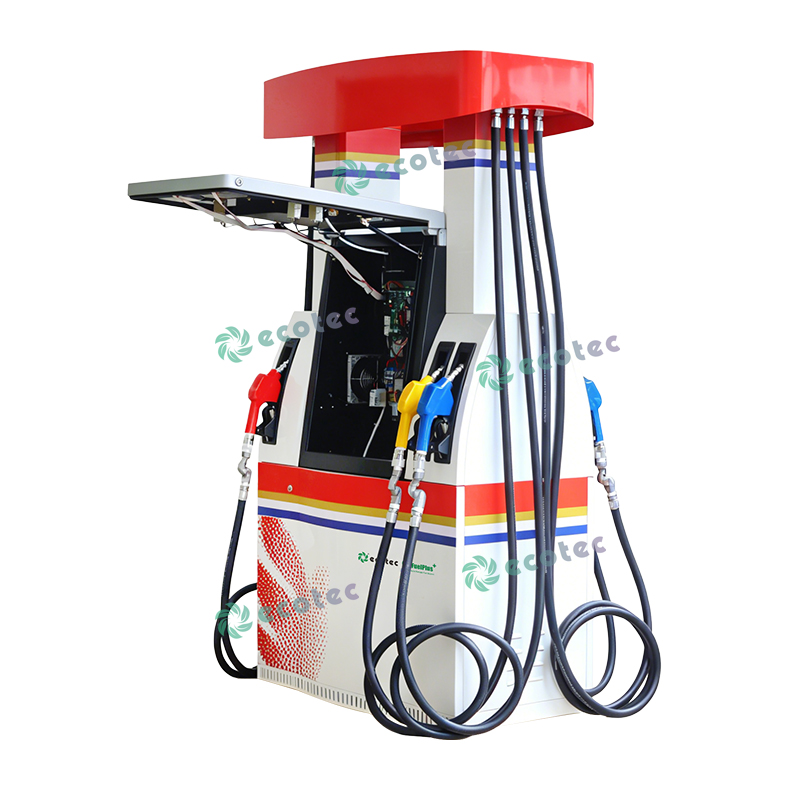

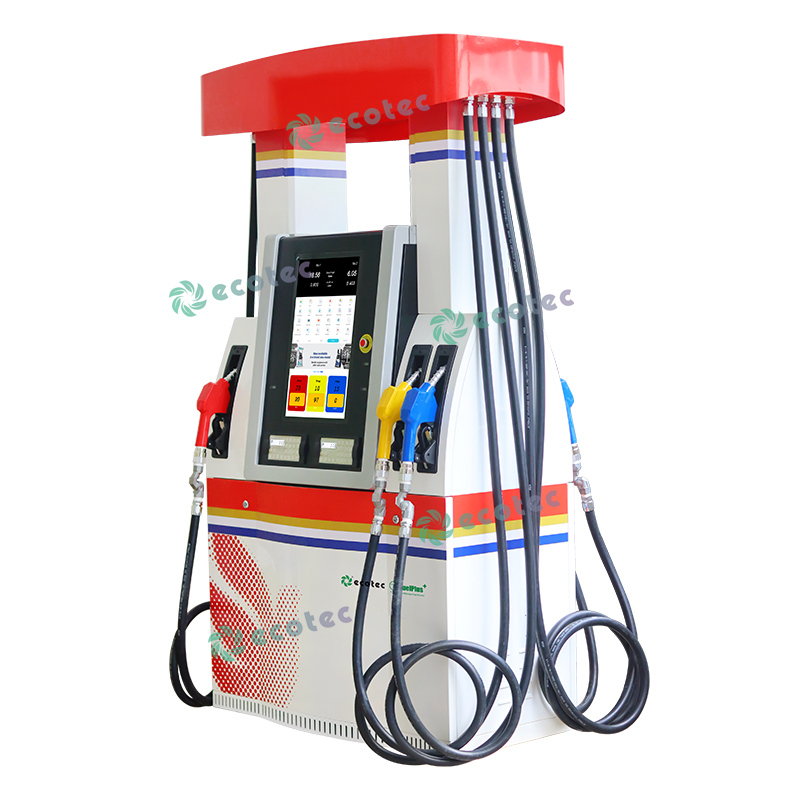

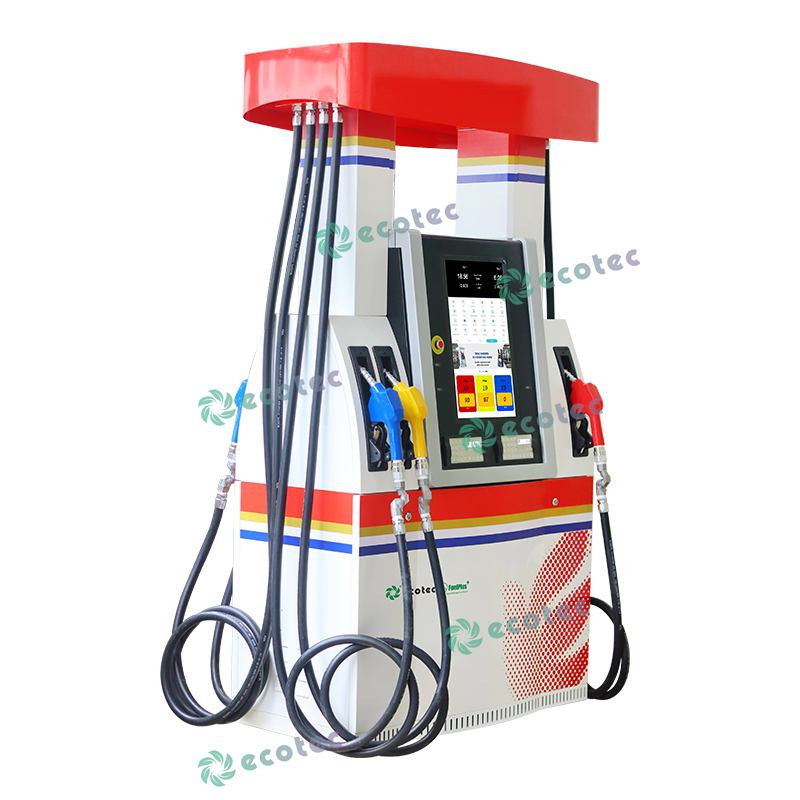

Gas Station Ecotec Six-nozzle Fuel Dispenser, High-quality Fuel Pump with touch screen system -HG366

Voltage
220V/380V
Power
0.75kw, 1.0kw
Mounting type
Wall
Material
Brass

Certificates
ISO9001
Power Supply
110V/220V/380V, 50/60Hz
Design Life
10 years
Warrantee
2 Years for Main Parts
Pump
1 pump automation
Nozzle
2 nozzle
Flow meter
2 Flow meter
Standard
Atex, OIML
Solenoid Valve
3/4 inch

Model:
HG366
Brand:
ecotec

Availability:

Quantity:



Inquire Add to Basket

Product Description


                        Universe 2025 Automated Fuel Pump Dispenser for Gas Station with Diesel Oil Capability

水印4


                         - Ecotec Design & Manufacture

Ecotec fuel dispenser meets OIML and ATEX standards and achieving optimum balance of excellent performance economically.

                         Model available from 1 nozzle to 8 nozzle, max 2 nozzle per side can work at the same time, available for both submersible and suction type.Available Tatsuno /Tokheim /Bennett/LPG/AdblUe/ CNG Dispenser, as well as for DC EV charger

 - Ecotec Smart Dispenser Controller
                         Ecotec smart controller is durable and statble, and it can work with FuelPlus+ station management system.



                          Function List

Easy operation Lessmaintenance Stable and accurate Wide range of power supply Varies of keyboard and display board to meet different market Many special function for different area use Self diagnostics with error code
                          Working with FuelPlus+ station management system

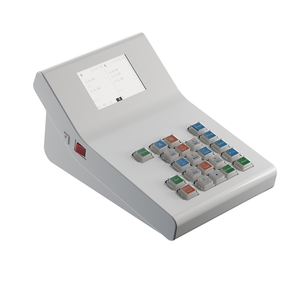

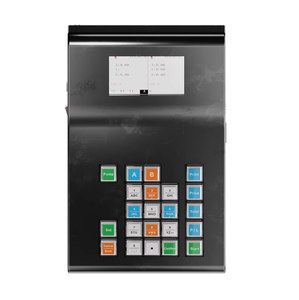

                          - Optional Keypad and Display Board

                         Ecotec offer more options for customer, below is some of our options, contact seller for more type


                          - Both Suction and Submersible type available.

                         Ecotec also accept customization, send us the type you prefer!


                         Suction Model

                         (Tatsuno Type)


                         Suction Model

                         (Tokheim Type)


                         Submersible Model

                         （Paper/Metal filter option)

FuelPlus+ Station Management System

                          - Oil depot, oil tanker trailer, Fuelplus can manage the fuel dispenser, ATG, LED price boardand other device by means of Rs485, Rj45, Lora,wifi,4G/3G and GRPS with database on doudorlocal basis

 - Available on PC, Laptop, Cell phone both i0S and android, as well as other paymentterminal(POS)


                         - Fuelplus can set upcenter database to control and monitor all fleet stations, every stationcan have local management system to control the fuel dispenser, ATG,LED price, every fueldispenser can install POS terminal, IC card reader, lD card reader to achieve self-service,every ATG can linked to fuelplus timely - Fuelplus also can work as single station or single dispenser, also container station solution,you can install the application on can smart control screen or POS to achieve the control.itcan working without any PC


Products Specifications

Standard Model List
Dispenser	Model	Product/Pump	Flow Meter /Nozzle /Hose	Display	Flow rate LPM
Suction type	A112S	1	1	2	50L/M
	A122S	1	1	2	45L/M
	A224S	2	2	4	50L/M
Remote / Submersible type	A112R	1	1	2	50L/M
	A122R	1	1	2	45L/M
	A224R	2	2	4	50L/M
Nozzle number, product number ,flow rate all can be customized, contact for more details

Specification
Pump	Type	Optional (tatsuno, tokheim, bennett, submersible)
	Inlet Pressure	≥54kPa.
	Flow rate (L/min. )	55±5
	Suction Distance (m)	6(vertical meter) / 50(horizontal meter)
Flow Meter	Type	Optional
Flow Meter	Accuracy	±0.2%
Motor	Voltage(V)	110V/220V/380V, 50Hz/60Hz
Motor	Capacity(HP)	1HP(0.75kw)
Input Voltage		110V/220V/380V, 50Hz/60Hz
Nozzle		Auto Shut-off Nozzle
Environmental Condition		-40ºC~~+55ºC
Control Type		Solenoid Vale Control Type
Preset		Function Provided(Small LCD Indicator)
Display(Counter)	Type	LCD and Bright Backlight
	Digit of Volume	0~~999, 999(6 Digits), Decimal point can be changed
	Digit of Amount	0~~999, 999(6 Digits), Decimal point can be changed
	Digit of Unit price	0~~9999(4 Digits), Decimal point can be changed
	Digit of Total Range	0~~99, 999, 999, 99
Optional Display	Type	LCD and Bright Backlight
	Digit of Volume	0~~99, 999, 999(8 Digits), Decimal point can be changed
	Digit of Amount	0~~99, 999, 999(8 Digits), Decimal point can be changed
	Digit of Unit price	0~~999999(6 Digits), Decimal point can be changed
	Digit of Total Range	0~~99, 999, 999, 99
Totalizer		1~~9, 999, 999
Hose		4.5m
Weight		250kg
Dimension(L×W×H)		10606002200(mm)
Qty of Container		40FT: 66pcs 20FT: 22pcs
