Unexpected shutdowns of submersible turbine pumps paralyze fuel stations and industrial facilities alike. When fluid stops moving, you immediately face lost revenue, frustrated customers, and premium emergency repair fees. Operators frequently ignore early warning signs of mechanical distress. They often dismiss these red flags as minor operational quirks until a catastrophic motor failure happens. This reactive mindset turns predictable maintenance tasks into chaotic operational crises.
You need a reliable, evidence-based diagnostic framework to identify failing equipment early. We will show you exactly how to spot the critical warning signs before sudden breakdowns occur. By learning these indicators, facility managers can make informed repair-versus-replacement decisions without relying on guesswork. Transitioning to a proactive maintenance strategy protects your daily operations and keeps customer satisfaction high.
Flow degradation is a timeline, not an event: Consistent slow flow across all nozzles usually points to STP impeller wear, not just clogged dispenser filters.
Breaker trips are cries for help: Frequent manual resets often indicate critical insulation breakdown or dangerous current spikes.
Auditory evidence matters: Unusual grinding or cavitation sounds at the sump signal severe mechanical degradation.
Proactive evaluation saves capital: Diagnosing failing fuel dispenser components early allows for scheduled, compliant replacements rather than emergency downtime.
Customers quickly notice when dispensing speeds drop. They experience painfully slow fueling processes during their visits. Meanwhile, your site system visibly struggles to maintain adequate pressure across multiple fueling points simultaneously. This operational reality creates long queues, drives away impatient patrons, and directly impacts your daily volume targets. Operators often assume the entire site needs a massive overhaul, but the root cause usually hides underground.
Slow flow does not automatically mean the motor is dead. We must transparently acknowledge the existence of false positives. Rushing to replace major equipment without isolating the problem wastes capital. You must systematically check and replace the primary filters first. Clogged filters restrict fluid movement significantly. By replacing these items, you eliminate basic blockages from your diagnostic checklist. Only after verifying clean filters should you escalate your investigation toward the pump mechanism.
If you install clean filters but system pressure remains low, deeper mechanical issues likely exist. The internal impellers endure immense friction over thousands of hours of operation. Over time, they suffer severe physical wear. Their edges degrade, reducing their ability to push fluid forcefully. Alternatively, the pump intake may harbor partial obstructions. Debris buildup forces the motor to work incredibly hard while delivering subpar output. This constant strain accelerates the inevitable failure of the equipment.
Do not rely on anecdotal complaints from customers or staff. You need hard data. Conduct a localized flow rate test to document exact performance degradation. Measure gallons per minute (GPM) meticulously. We recommend performing these tests during both peak hours and off-peak periods.
Comparing these two data sets reveals how the pump handles varying load demands. If off-peak GPM is acceptable but peak GPM plummets, your motor lacks the necessary torque to support multi-point dispensing. Use the diagnostic matrix below to categorize your findings.
Observed Symptom | Filter Condition | Peak Hour Drop? | Probable Root Cause |
|---|---|---|---|
Slow flow at one single nozzle | Dirty | No | Clogged dispenser filter |
Moderate flow drop across all nozzles | Clean | Yes (slight) | Intake obstruction or minor line leak |
Severe flow drop across entire site | Clean | Yes (dramatic) | Severely worn impellers / failing motor |
Many site operators make a dangerous operational error. They treat a controller or breaker trip as a routine manual reset. They assume the system just experienced a temporary glitch. We call this the "nuisance trip" fallacy. Continuous resetting ignores the underlying distress signals. Flipping the breaker back on repeatedly forces electricity into a compromised circuit. This reckless practice risks catastrophic short circuits, massive equipment damage, and severe electrical fires.
Breakers trip because the system draws too much power. An STP Motor pulling excessive amperage signals critical internal distress. Surge currents often spike to three or seven times the normal operating amps. This happens because the unit works too hard fighting physical resistance. Bearing seizure prevents smooth rotation, forcing the electrical system to compensate. Alternatively, the electrical insulation surrounding the copper windings might be failing, causing electricity to leak away from its intended path.
You cannot diagnose electrical degradation by simply looking at the panel. Certified professionals use Megohm testing to evaluate equipment health accurately. This process measures insulation resistance inside the motor.
Applying High Voltage: A technician uses a megger to send a specific, safe high voltage through the wiring.
Measuring Resistance: The tool measures how well the insulation contains the electricity.
Identifying Early Degradation: Low megohm readings indicate early-stage stator degradation.
Detecting Moisture: Dropping resistance often reveals hidden water intrusion inside the motor housing before it fully shorts out.
Running electrically compromised equipment in a hazardous fuel environment presents extreme safety risks. Sparks from failing insulation can ignite vapors. Regulatory bodies mandate strict compliance regarding electrical safety in these zones. If your system trips frequently, take the affected pump offline immediately. Prioritize human safety and site integrity over temporary fuel sales.
Listen closely at the tank sump. Healthy pumps emit a smooth, consistent hum. When components degrade, they broadcast specific auditory warnings. You should listen for grinding, heavy humming without active pumping, or rhythmic clicking. These sensory indicators provide immediate clues about internal damage without requiring system disassembly. Pay attention to vibrations traveling up the pipework, as they indicate severe imbalances underground.
Different noises correspond to specific mechanical failures. Understanding these sounds helps you pinpoint the exact breakdown mechanism.
Grinding Noises: This sound points directly to bearing failure. When the small metal balls inside the bearings crack or lose lubrication, they grind against their housing. It can also indicate physical misalignment of the main shaft.
Humming But Not Pumping: This is a locked rotor situation. The system receives full electrical power, but the shaft remains totally seized. The electrical energy converts entirely into heat instead of motion. You must power off the unit immediately to prevent complete motor burnout.
Cavitation Noises: This sounds exactly like pumping marbles or gravel. Cavitation occurs when liquid turns into vapor bubbles due to excessive friction or intake blockages. These micro-bubbles collapse against the metal surfaces with immense force. This phenomenon aggressively eats away at the impeller blades, destroying them quickly.
Ignoring auditory warnings leads to broader infrastructure damage. Prolonged vibration does not just kill the core motor. The aggressive shaking travels outward. It heavily stresses adjacent piping, loosens structural seals, and damages critical Fuel Dispenser Components attached to the system. A minor bearing issue eventually causes widespread leaks and compounding repair costs.
Diagnostic Auditory Chart | ||
Sound Profile | Primary Mechanical Cause | Required Immediate Action |
|---|---|---|
High-pitched grinding | Bearing failure or shaft misalignment | Schedule maintenance; monitor temps |
Heavy, loud hum (no fluid flow) | Locked rotor / seized shaft | Cut power immediately |
Popping or "gravel" sounds | Cavitation / Vapor lock | Check intake for severe blockages |
When you confirm a failure, you face a major financial decision. You must determine if the system remains salvageable or requires a full replacement. Throwing money at an obsolete unit drains capital quickly. Conversely, replacing a unit prematurely wastes perfectly good hardware. You need a logical framework based on equipment age, overall condition, and future site needs.

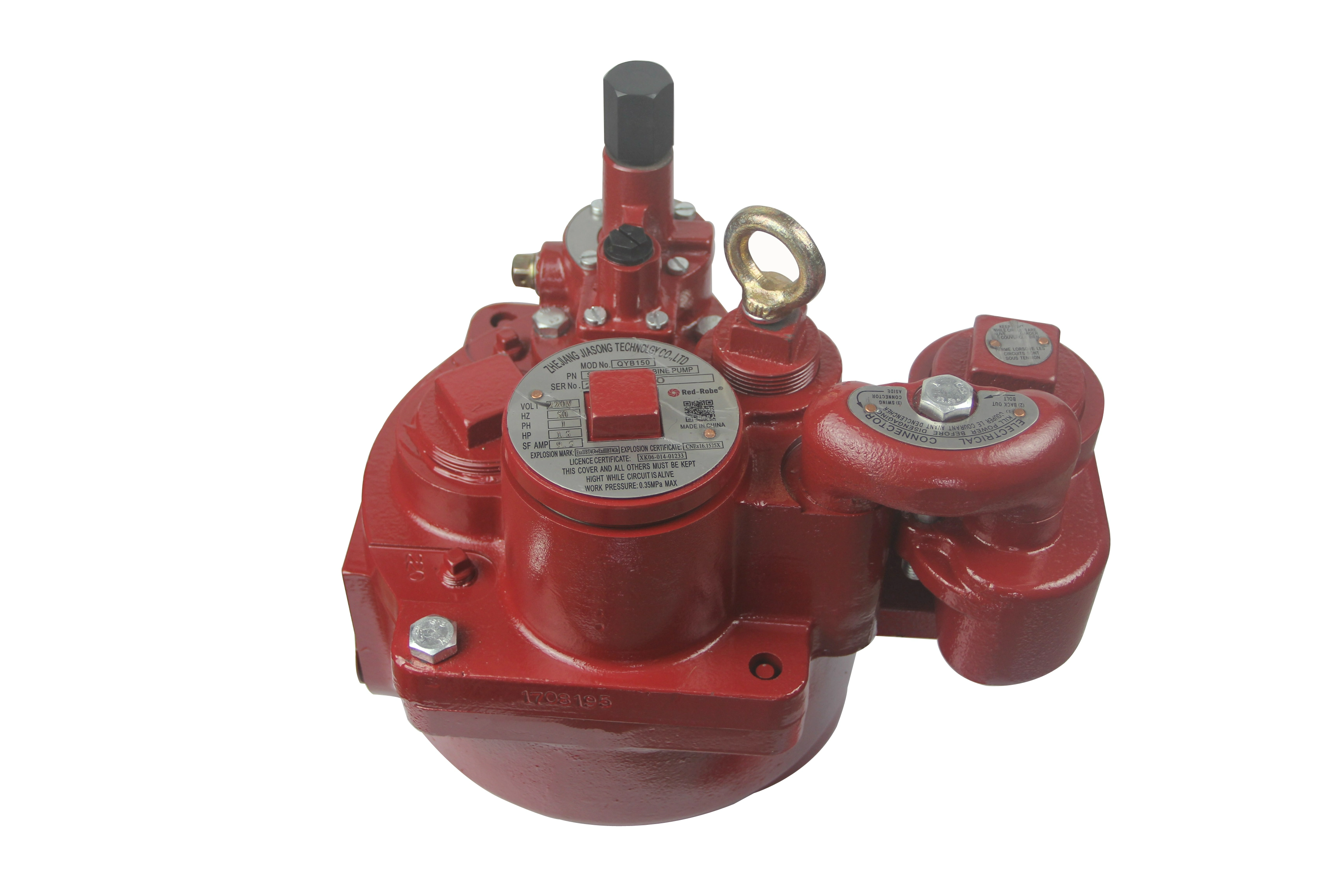

Industry standards provide excellent benchmarks for durability. A well-maintained Red Jacket Submersible Pump Motor sets the standard for long-term reliability. These robust units typically operate flawlessly for 8 to 15 years. If your existing unit nears the end of this lifecycle and exhibits the warning signs discussed earlier, partial repairs make little sense. Capital expenditure on a new, high-efficiency motor proves mathematically sounder than enduring constant piecemeal repairs and unpredictable downtime.
Carefully evaluate whether the failure limits itself to specific components or affects the core pump. Sometimes, a simple fix restores full functionality. A failing capacitor or a malfunctioning controller panel requires minimal investment to replace. However, if the core wet end degrades, or the internal stator insulation fails Megohm testing, component-level repairs fail to solve the actual problem. System-level failures demand comprehensive replacement.
Do not simply replace an old unit with an identical model without reviewing site volume. Factor in your future site demands. If your location expanded its dispenser count since the original installation, the old horsepower rating likely falls short today. Replacing a struggling 3/4 HP unit with a robust 1.5 HP unit might be strictly necessary to handle the increased load. Future-proofing your site ensures customers never experience slow flow during rush hours.
Replacing major underground equipment disrupts normal business operations. Smart facility managers plan these interventions strategically. You must schedule the replacement during historically low-volume hours, typically late at night or early morning. Section off the work zone clearly to protect customers. Prepare the necessary lifting equipment and safety gear beforehand to ensure the on-site team completes the extraction and installation swiftly.
Sourcing unreliable aftermarket parts introduces unnecessary risk into a hazardous environment. You must prioritize original equipment manufacturer (OEM) parts. Ensure absolute compatibility between the new motor, the existing manifold, and your site's environmental compliance monitoring systems. A mismatched component easily triggers false leak alarms or causes subtle pressure leaks. Relying on trusted vendors guarantees your new hardware meets stringent industry safety certifications.
Do not wait for a complete system failure. Take proactive control of your infrastructure today. We recommend booking a certified technician immediately. Instruct them to perform a comprehensive electrical audit, including exact amp draw measurements and Megohm testing. Have them conduct a thorough mechanical baseline check. Establish this baseline health profile before authorizing any full replacement. This diligent approach prevents unnecessary spending and ensures operational continuity.
Submersible motors operate under intense physical stress, and they do not fix themselves. Mechanical and electrical degradation remains strictly linear; problems only worsen over time. Ignoring slow flow rates, frequent electrical trips, and alarming vibrations directly invites catastrophic equipment failure.
You now possess a clear diagnostic framework. By trusting evidence-based testing over hopeful guesswork, you protect your infrastructure. Transitioning from reactive firefighting to a proactive replacement schedule preserves your profit margins. It maintains strict environmental compliance and ensures your customers enjoy uninterrupted, high-speed service every single day.
A: A quality submersible motor typically lasts 8 to 15 years. The exact lifespan depends heavily on your site's cycle frequency, fuel quality, and adherence to preventative maintenance schedules. High-volume stations might see a slightly shorter lifespan due to continuous operation and heavier workloads.
A: Yes, you certainly can. Certified technicians perform specialized electrical tests directly at the controller panel. Checking the amp draw and conducting megohm tests will reveal insulation breakdown and motor health without extracting the entire unit from the underground tank.
A: Sudden failures usually stem from massive electrical surges, lightning strikes, or severe dry running. Water intrusion is another leading culprit. When water breaches the mechanical seals, it immediately compromises the internal electrics, causing rapid, irrecoverable short circuits.
A: No, slow dispensing has multiple potential causes. You must systematically rule out minor issues first. Check primary fuel filters, inspect leak detectors, and verify line pressure. Only after confirming these elements are clear should you diagnose the core pump motor for complete failure.
