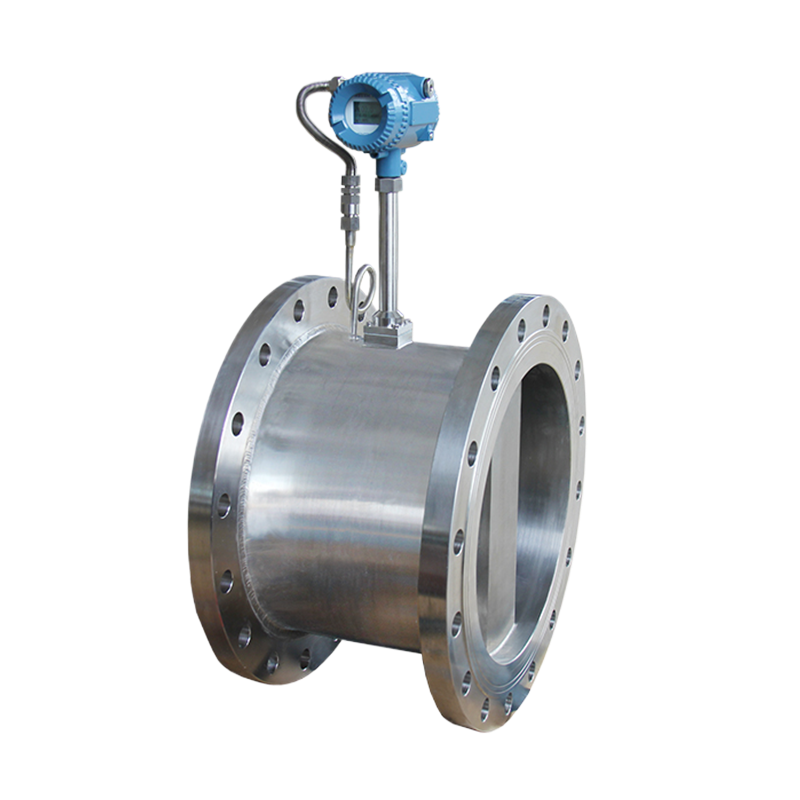

LUGB Series Vortex Flow Meter
Using Karman vortex technology, this flow meter accurately measures steam, gases and low-viscosity liquids like water and gasoline.
Working Principle:
A non-streamlined vortex generator is installed inside the flowmeter. When fluid passes through, two rows of regular vortices are alternately generated on both sides of the vortex generator, which is known as the Karman vortex street. The frequency of the vortices is proportional to the flow velocity. The volumetric flow rate of the fluid is obtained by detecting the vortex frequency through a built-in sensor.
Key Benefits:
-No moving parts, minimal wear;
-Easy installation & maintenance;
-Multi-parameter measurement with optional configuration of temperature/pressure transducer (temperature/pressure);
-Long service life.

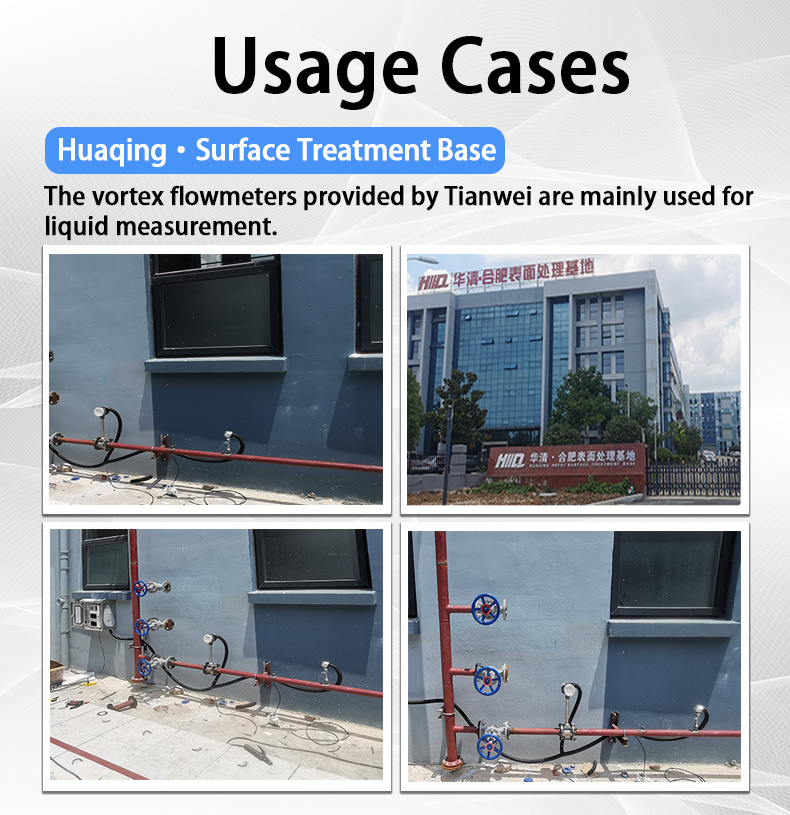

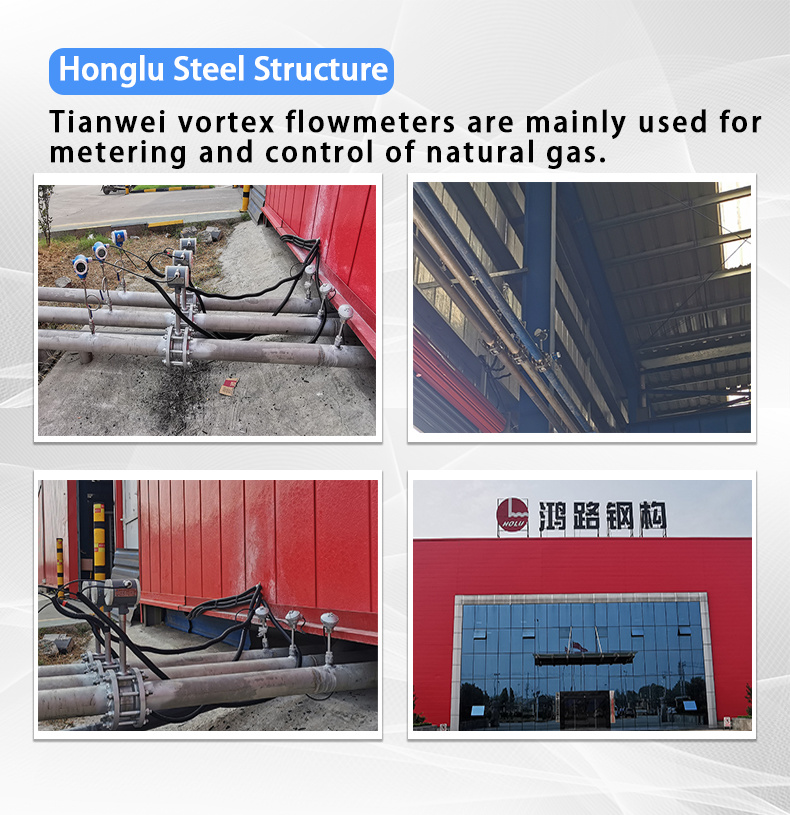

| Model Series | LUGB |
| Housing Material | SS304 |
| Installation | Flange (DN25~450), Flange Clamp (DN25~200), Insertion |
| Nominal Pressure | 1.6Mpa（DN250~300）, 4.0Mpa（DN25~200） |
| Nominal Diameter | 25~1000mm
(Pipeline type for DN25~450mm, Insertion Type for DN300mm and above) |
| Display | Digital |
| Signal Output | 4-20mA two-wire system/Pulse three-wire system |
| Power Supply | 12/24VDC for transducer & transmitter;
3.6VDC for onsite display only |
| IP Rating | IP65, IP68(Submersible Type) |
| Explosion-proof Rating | Exd IIC T6 Gb (optional) |
| Medium | Steam, Gases, Low-viscosity Liquids |
| Accuracy | ±1%/±1.5% (Pipeline Type); ±2.5% (Insertion Type) |
| Flow Range | 1.2~1700m³/h (Liquid), 8.8~170k m³/h (Gas) |
| Medium Temperature | -20~250℃ (up to 350℃ with high-temperature probe) |
| Ambient Condition | -20~55℃, Relative Humidity5~90%,
Atmospheric Pressure 86~106kPa |
| Remarks | Optional temperature & pressure compensation configuration for unstable T/P conditions. |
