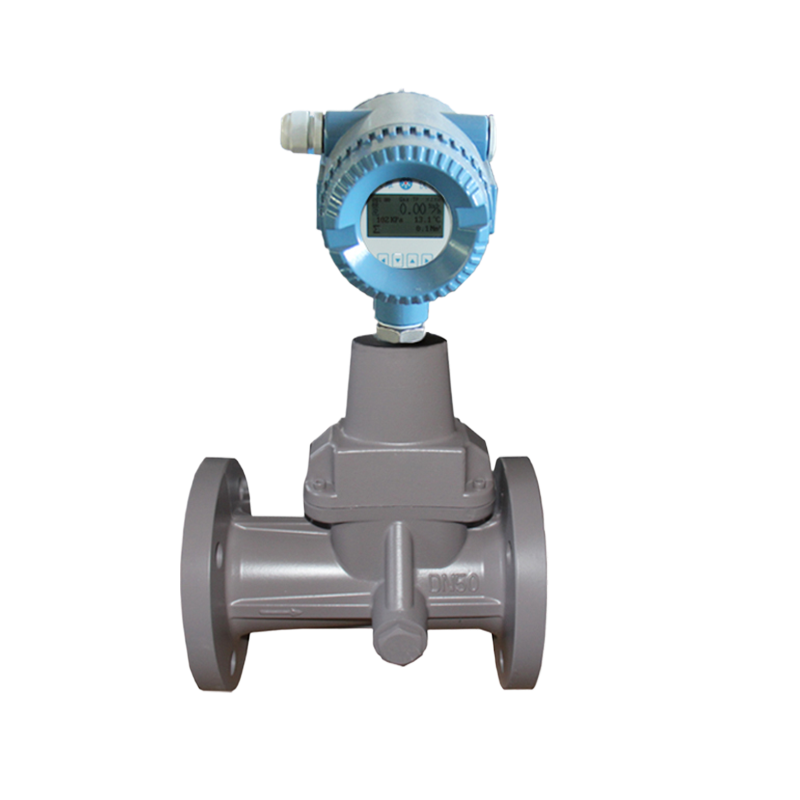

Swirl Flow Meter With Flange Gas Metering Measurement Measuring Flow Rate, Temperature, Pressure

This is a newly developed gas flow meter with leading-edge technology, capable of measuring flow rate, temperature, pressure. Equipped with automatic temperature & pressure compensation, it is an ideal instrument for gas metering.

  • LUGB

  • Ecotec

  • 9026100000

Availability:
Quantity:
Inquire Add to Basket

Working Principle:
The flowmeter body resembles a Venturi tube, with a set of helical guide vanes installed at the inlet. These vanes induce intense  swirling flow in the incoming fluid. As the fluid enters the diffuser section, the swirling flow interacts with the backflow, causing a secondary rotation and generating a gyroscopic precession effect. The precession frequency is directly proportional to the flow rate and is unaffected by the fluid’s physical properties or density. It is converted to a pulse signal, which, along with temperature and pressure signals, is sent to the microprocessor for processing and displayed on the LCD screen (showing instantaneous flow, cumulative flow, temperature and pressure).


Key Benefits:

-No moving parts, minimal wear;
-Compact structure, light weight;
-Multi-parameter measurement (flow rate, temperature, pressure);
-Highly resistant to pipeline vibration and pressure fluctuations;
-Easy installation & maintenance;

-Long service life.


Model Series
LUXZ
LC-B、C
LC-W
Construction Material
Housing
Helical Flow Guide Material
Stainless Steel（SS304/316）
SS304 / Aluminum Alloy
Aluminum Alloy
1.6, 2.5Mpa
Installation
Flange
6~15mm

Nominal Pressure
1.6, 2.5, 4.0, 6.3


Nominal Diameter
15~200mm


Display
Digital (flow rate, density, temperature)


Signal Output
4-20mA two-wire system/Pulse/RS485


Power Supply
3.6V/24VDC(Single or Dual)


IP Rating
IP65


Explosion-proof Rating
Exd IIC T6 Gb (optional)


Medium
Gases
Accuracy
±1%，±1.5%
Flow Range
0.3~3600m³/h
Medium Temperature
-20~80℃
Ambient Condition
-30~65℃, Relative Humidity 5~95%,
Atmospheric Pressure 86~106kPa
Optional configuration
