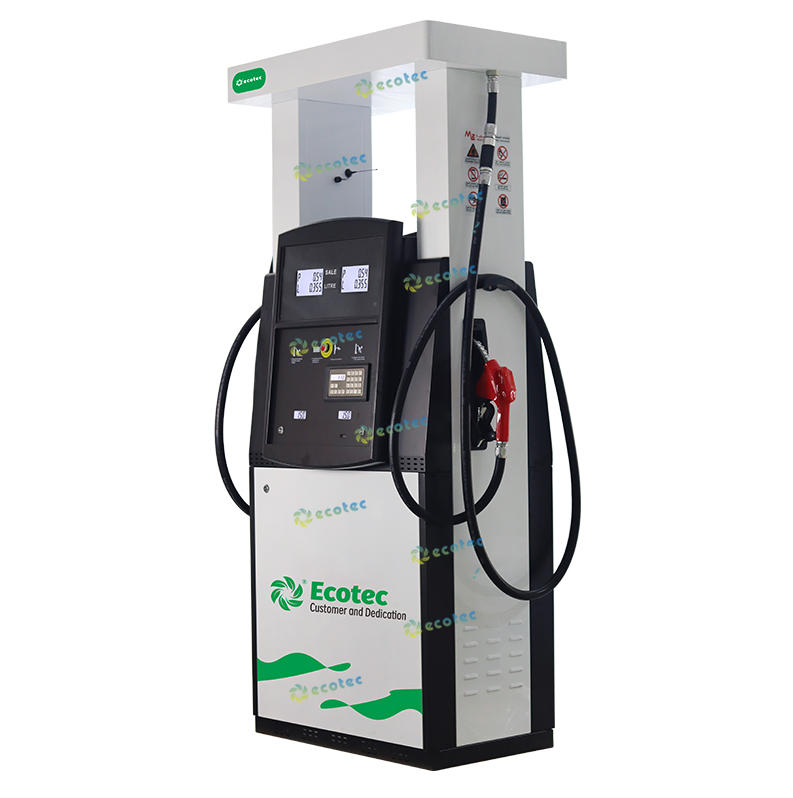

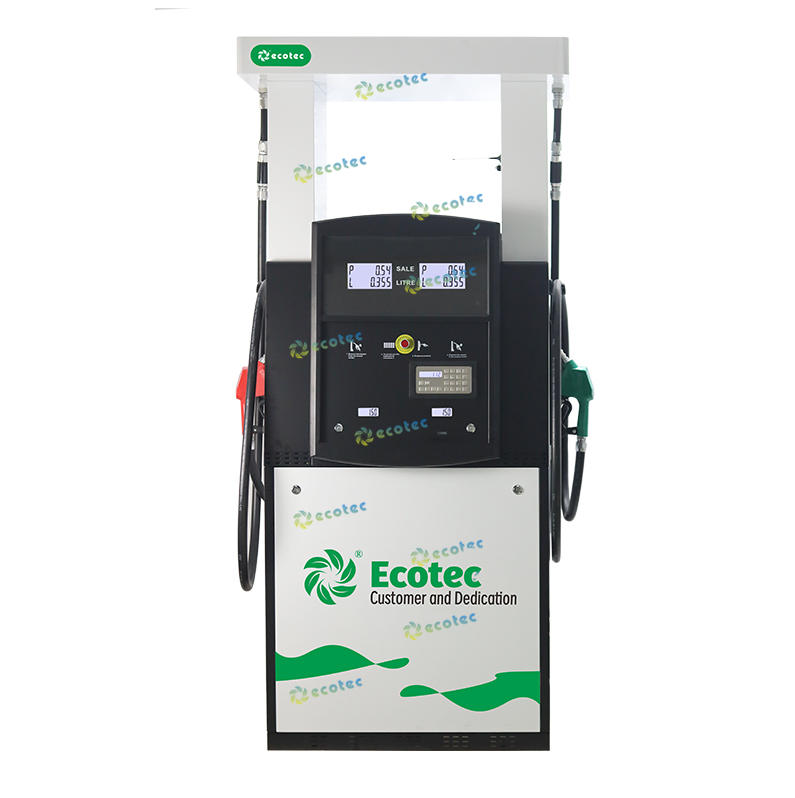

Ecotec Submersible Type Fuel Dispenser with 2 Nozzles for Fuel Station
Ecotec fuel dispenser is with highest accuracy, quality, durabilityand reliability that always provide utmost satisfaction for all.
Fuel Dispenser M series with flow rate from 5LPM to 120LPMserve for dispensing of liquid oil products into car or trucks.
Main Technical Parameters |
| Motor rated power | 750W (or 1000W ) |
| Inlet oil pressure | Submersible pump series≤0.3MPa |
| Max permissible error | ±0.20% |
| Ambient temperature | -25℃～＋55℃(low temperature area: -40℃～＋55℃) |
| Relative humidity | ≤95% |
| Vapor recovery | 95% ～ 105% (with vapor recovery feature) |
| Unit price setting range | 1.00 ～ 99.99 yuan /L |
| Display after power failure | ≥15 minutes |
| Noise | ≤80dB(A) |
| Flow range |
| 5L/min ～ 50L/min (±10%) |
| Large flow 10L/min ～ 100L/min (±10%) |
| LMaximum flow with vapor recovery feature 45L/min (±10%) |
| Power |
| Common: AC380V+10%, -15% (50Hz±1Hz) |
| Single-phase: AC220V+10%, -15% (50Hz±1Hz) |
| Vehicle-mounted: DC12/24V±10% |
| Single measurement range |
| Amount: 0.01 ～ 9999.99 yuan |
| Volume: 0.01 ～ 9999.99 L |
| Cumulative measurement range |
| Amount: 0.01 ～ 99999999.99 yuan |
| Volume: 0.01 ～ 99999999.99 L |

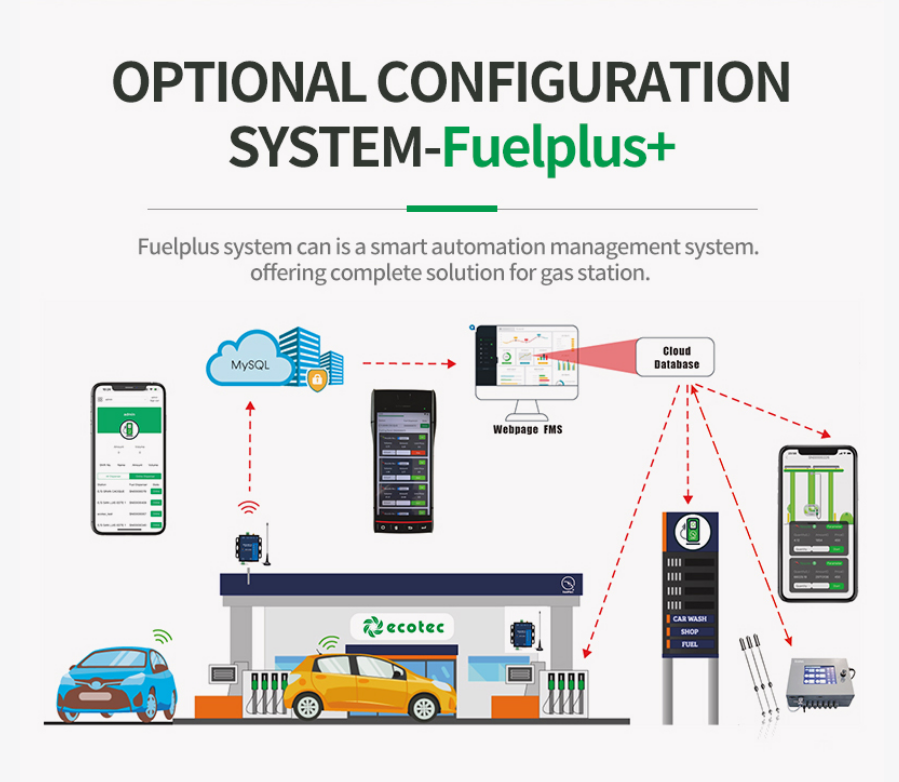

Fuelplus FMS——A easy way to manage the gas station
Fuelplus system can is a smart automation management system, offering complete solution for gas station, oil depot, oil tanker trailer, Fuelplus can manage the fuel dispenser, ATG, LED price board and other device by means of Rs485, Rj45, Lora,wif.4C/3G and GRPS with database on cloud orlocal basis: available on PC, Laplop, Cell phone both IOS and android, as well asother payment terminal( POS)
Fuelplus have several controlon different user roles, station owner can achieve full control of station on ful weather, employeecan query all record, report and control fueling in office, driver and achieve self-service
Ecotec design and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the
dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all
Ecotec top after-sale support
Ecotec offer 1 year warranty and full life tech support for all products. More customer choose ecotec considering the quick response and professional aftersell support.
Owner and User
Fuel dispenser is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all
Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function,
suitable for single nozzle to 8 nozzle
suitable for both suction and submersible
suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser
suitable for regular flow rate and high flow rate
Option with TV, LED, Printer, Bank Card reader etc
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer′s need, and struggle for it, Looking forward to cooperate with you better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standarding for, we will alwasy focus customer
