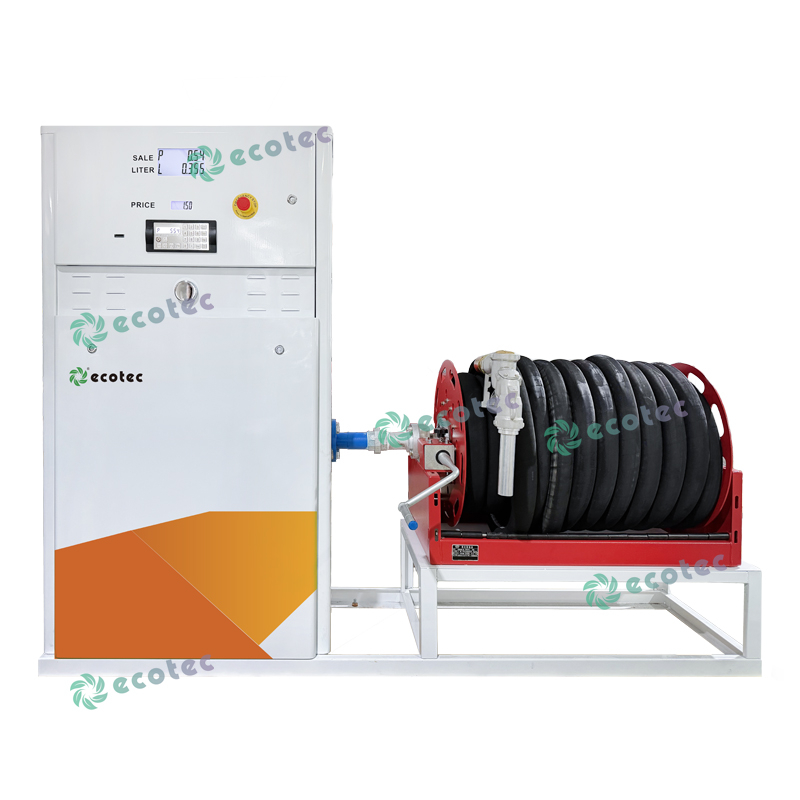

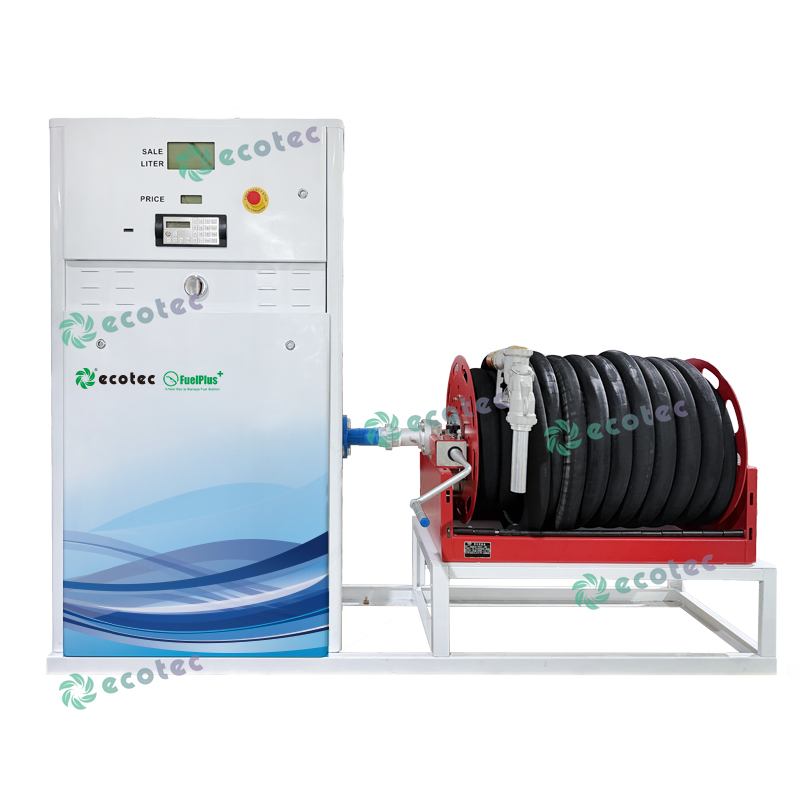

Ecotec Heavy duty 200L/M Dispenser 2inch with hose reel Submersible Fuel Dispenser for Petrol Station

Availability:
Quantity:
Inquire Add to Basket

Type
Fuel Dispenser
Material
Cast Iron
Warranty
12 Months
Place of Origin
Zhejiang, China
Brand Name
Ecotec
Model Number
ET-D224
Working Voltage
220V
Flow Rate
100-300L/MIN
Product name
Fuel Dispenser A Model
Application
Oil & Gas Filling
Material
Cast Iron or Stainless Steel Body
Flow Rate
5-75L/MIN
Pump
High Flow Motor and Pump SET
Meter
2 LC METER
Package
1060*440*1810 mm
Weight
380KG
Voltage
220/380V
Nozzle
3/4 or 1 inch
Standatd Model List
Dispenser
Model
Product/Pump
Flow Meter/Nozzle
Display
Flow L/MIN

Suction Type
A112S
1
1
2
45
A122S
1
1
2
45
A224S
2
2
4
45

Remote/Submersible Type
A112R
1
1
2
50
A122R
1
1
2
50
A224R
2
42
3
50
Nozzle number, product number ,flow rate all can be customized, contact for more details
Specification


Pump
Type
Optional(Tatsuno/Bennet/Tokheim)
Inlet pressure
≥54kPa.
Flow Rate(L/MIN)
55±5
Suction Distance(m)
6(vertical meter) / 50(horizontal meter)

Flow Meter
Type
Optional
Accuracy
±0.2%

Motor
Voltage(V)
110V/220V/380V, 50Hz/60Hz
Capacity(hp)
1.5HP(0.75kw),2HP(1.1KW)
1HP(0.75kw)

Input Voltage
12V/24V/110V/220V/380V,50HZ/60HZ


Nozzle
Auto Shut-off Nozzle


Environmental Condition
-40ºC~~+55ºC
-40ºC~~+55ºC

Control Type
Solenoid Vale Control Type


Preset
Function Provided(Small LCD Indicator)




Display(Counter)
Type
LCD and Bright Backlight


Digit of Volume
0~~999, 999(6 Digits), Decimal point can be changed


Digit of Amount
0~~999, 999(6 Digits), Decimal point can be changed


Digit of Unit Price
0~~999, 999(6 Digits), Decimal point can be changed


Digit of Total Range
0~~99, 999, 999, 99


Totalizer

Totalizer
1~~9, 999, 999
Hose

4 M


Weight

250KG


Dimension(L*W*H)

1060*600*2200(mm)


Qty of Container

40FT: 66pcs 20FT: 22pcs
