FA
ECOTEC
| Quantity: | |
|---|---|
Product Information:

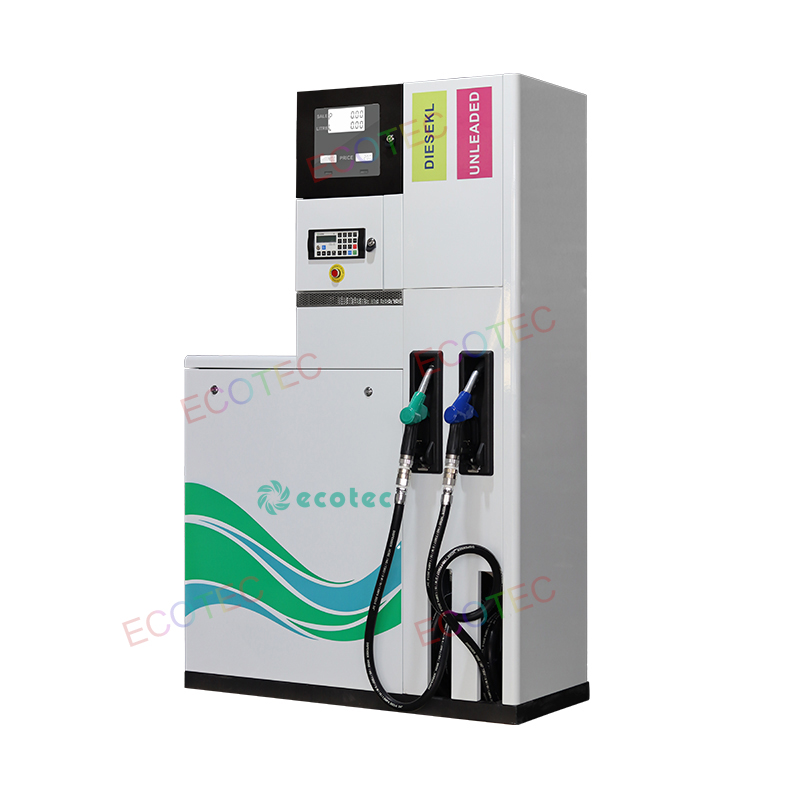

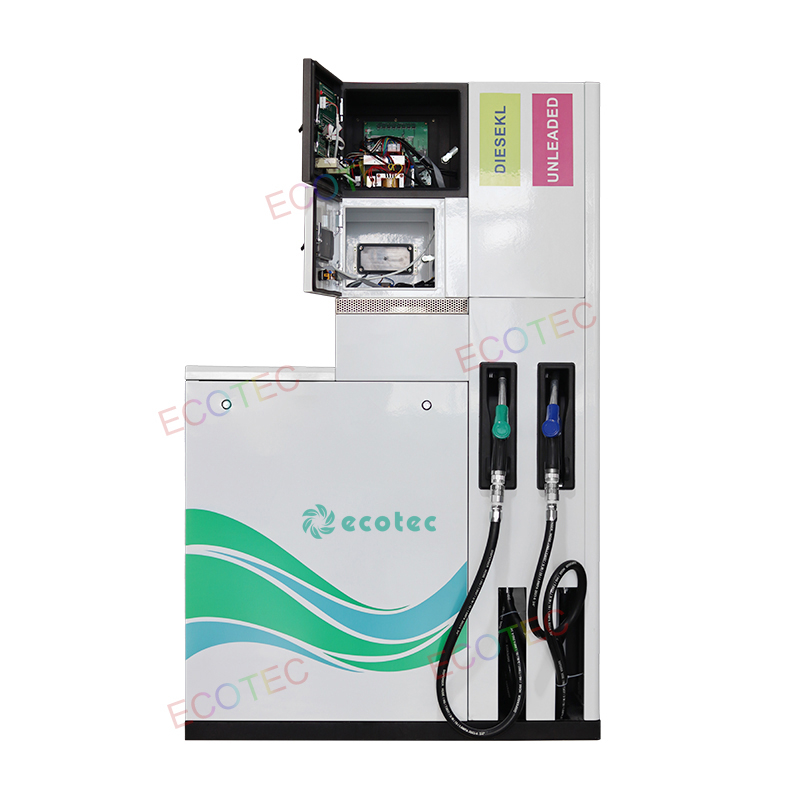

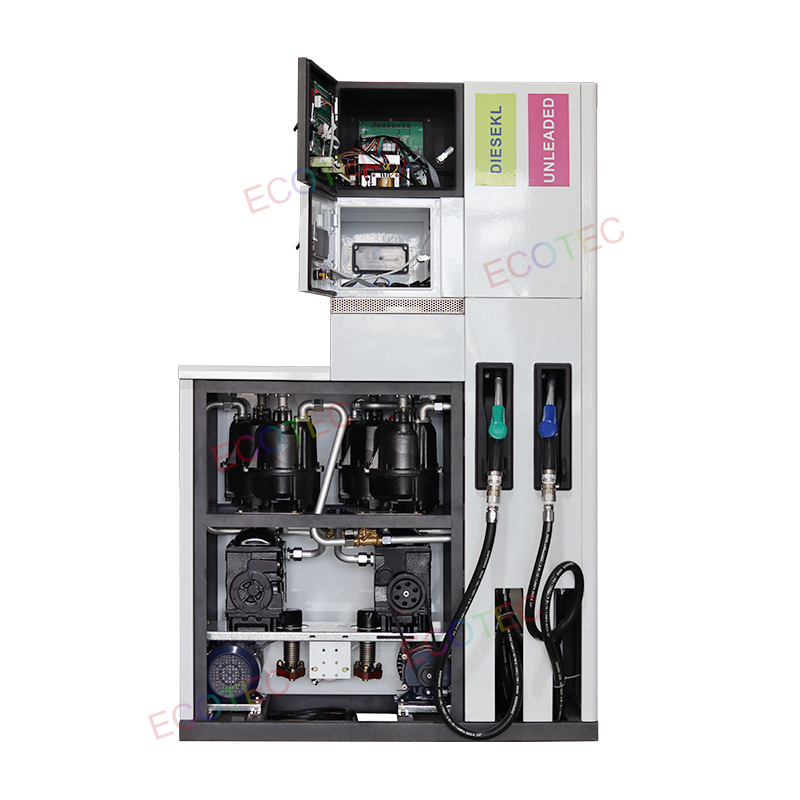

Ecotec Fuel Station Pump Fuel Dispenser Tatsuno Pump for Portable Gas Stations
Ecotec fuel dispenser can be designed for varies nozzle number, pump available for Tokheim, Tatsuno, Bennett
Flow meter available for Tatsuno, bennett, Gilbarco and Wayne Flow meter
Options for both suction and submersible, nozzle front and nozzle side, media player and automation
Ecotec are able to design and manufacture any kind of shape with any function or standard, customer's design, color, logo and all the special request are welcomed, also we can keep all the products with same performance
| Main Technical Parameters | |||
| Motor rated power | 750W (or 1000W ) | ||
| Inlet oil pressure | Submersible pump series≤0.3MPa | ||
| Max permissible error | ±0.20% | ||
| Ambient temperature | -25℃～＋55℃(low temperature area: -40℃～＋55℃) | ||
| Relative humidity | ≤95% | ||
| Vapor recovery | 95% ～ 105% (with vapor recovery feature) | ||
| Unit price setting range | 1.00 ～ 99.99 yuan /L | ||
| Display after power failure | ≥15 minutes | ||
| Noise | ≤80dB(A) | ||
| Flow range | 5L/min ～ 50L/min (±10%) | ||
| Large flow 10L/min ～ 100L/min (±10%) | |||
| LMaximum flow with vapor recovery feature 45L/min (±10%) | |||
| Power | Common: AC380V+10%, -15% (50Hz±1Hz) | ||
| Single-phase: AC220V+10%, -15% (50Hz±1Hz) | |||
| Vehicle-mounted: DC12/24V±10% | |||
| Single measurement range | Amount: 0.01 ～ 9999.99 yuan | ||
| Volume: 0.01 ～ 9999.99 L | |||
| Cumulative measurement range | Amount: 0.01 ～ 99999999.99 yuan | ||
| Volume: 0.01 ～ 99999999.99 L | |||
Other Products:
FUEL PUMP
ET Vane Pumps for fuel dispenser can be used to transfer gas-liquid mixture with the function of separation the air from gasoline, kerosene, diesel etc.
FUEL METER
ET-FM flow meter adopts advanced technology, which can be widely used fordifferent fuel dispensers.lt has the advantage of high flow, long working life, highaccuracyfirm structure, easyinstallation, etc
Ecotec provide tatsuno, tokheim, Gilbarco, Wayne flow meter to meter the different demand from different area, with special treatment
lt can be used for wide range of fuel, such as gasoline, diesel, kerosene, biofuel Gasohol, also can be used for Adblue and Engine oil.
Approved by OlML and MiD .
Our Advantages:
Ecotec design and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all
Packaging & delivery:
Company Profile:
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer′s need, and struggle for it, Looking forward to cooperate with you better products with better price.
