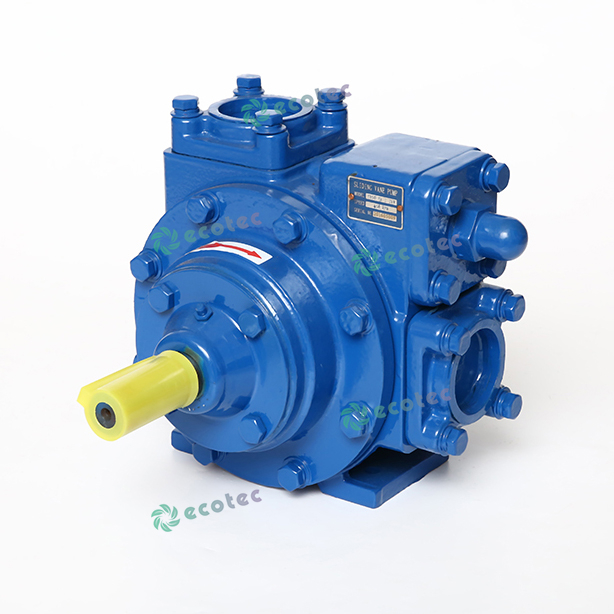

YB-80
ECOTEC
8413910000
| Quantity: | |
|---|---|
Vane pump uses a rotor with sliding vanes to drive the liquid transfer. The material of construction is nodular cast iron with self-lubricating vanes. Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps. The pump has its obvious advantage in the transmission of high flow at low revolution.
Product Features:
a. Excellent self-priming and dry run capabilities
b. Widely application in diesel, gasoline, lubricating oil, heavy oil, etc.
c. Vanes could be replaced without moving the whole pump makes easy maintenance.
d. High flowrate speed for choice
Product Specification:
| Model | Size | Nominal Flowrate L/M | Pump Speed L/M |
| YB-50 | 50mm | 329 | 780 |
| YB-65 | 65mm | 594 | 780 |
| YB-80 | 80mm | 1022 | 640 |
| YB-100 | 100mm | 1900 | 500 |
