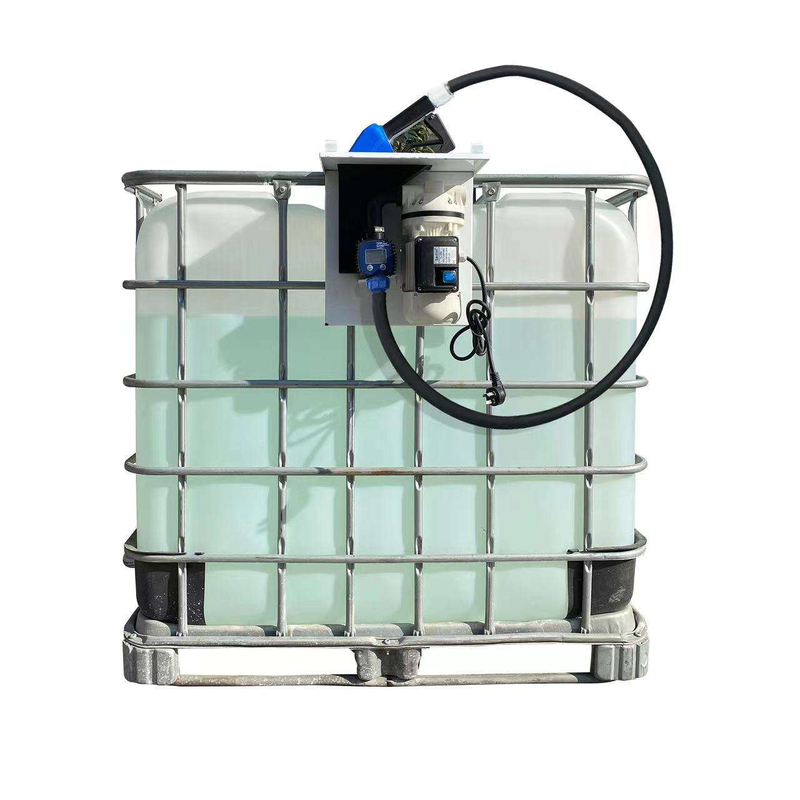

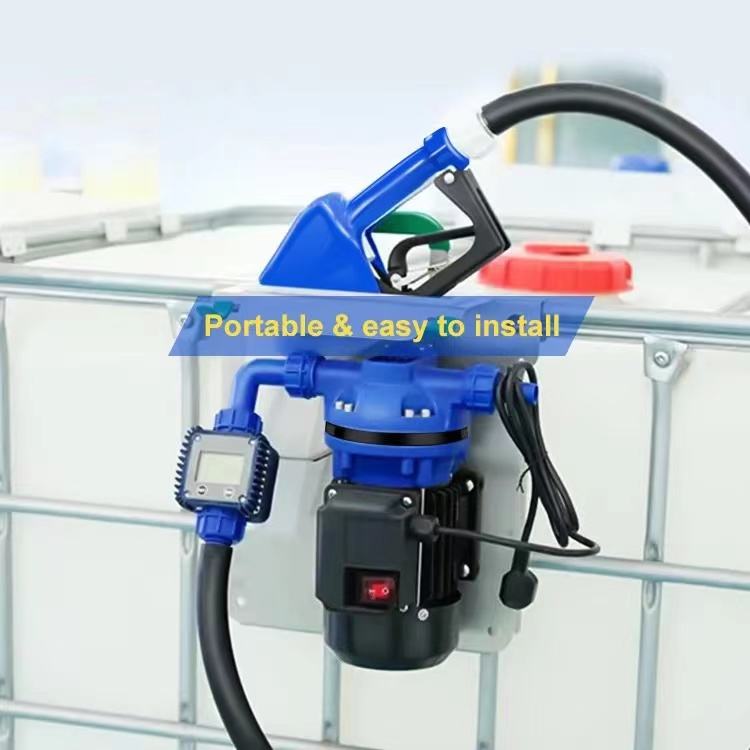

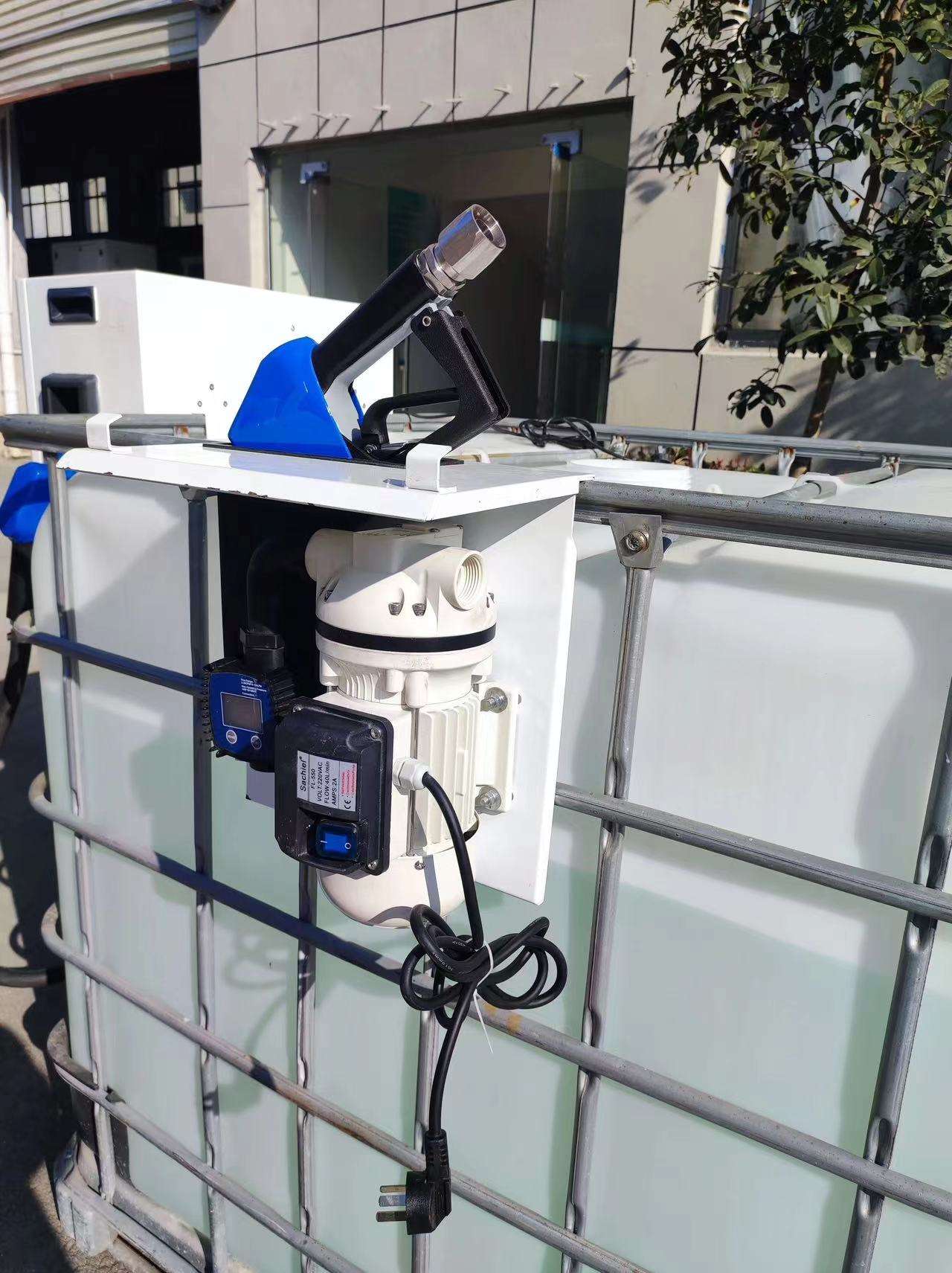

Automatic portable IBC tank DEF pump kit equipment transfer Adblue pump 1000L filling machine

Home » Products » Automatic portable IBC tank DEF pump kit equipment transfer Adblue pump 1000L filling machine

Share to:

Automatic portable IBC tank DEF pump kit equipment transfer Adblue pump 1000L filling machine

The machine takes advantage of high accuracy, convenient operation, and easy repair, and italso bears abroad functions, such as fueling as preset data, checking data and accumulative amount of fuel and sum of sales. The machine is widely used in a gas station for vehicles.
suitable for gasoline, diesel oil, kerosene, and various light fuel.(Equipped with communication ports, monitor and control fuel dispenser condition).

Model:
ET-8-2
Brand:
ECOTEC
Code:
FDET-ZN

Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Description

suitable for gasoline, diesel oil, kerosene, and various light fuel.(Equipped with communication ports, monitor and control fuel dispenser condition).

Specification

Main Technical Parameter
Motor	Voltage	10V/220V/380V (50/60Hz)
	Noise	< 80dB(A class)
	Ex-proof	ExdmbllAT3
Pump	Bennett type	Aluminum,15kgs,5-50L/min
	Tatsuno type	Aluminum,17.5kgs,5-45L/min
	Tokheim type	Castiron,37kgs,5-40L/min
	Subm. type	Extermal oil pump, parameters according to custome temperature
Ambient temp.	-25℃~+55℃
Suction Distance	6m (Vertical),50 m (horizontal)
Accuracy	0.30%
Tolerance	0.15%
Unit price range	0.01~999.99
Volume range	0.01-999999.99
Total volume	0.01-9999999999.99
Nozzle	Automatic shut-off type
Machine shape	Customized are acceptable(Include Logo)
Warranty period	One-year warranty on the machine and provide uninterrupted technical support

FuelPlus+ Station Management System

- Oil depot, oil tanker trailer, Fuelplus can manage the fuel dispenser, ATG, LED price boardand other device by means of Rs485, Rj45, Lora,wifi,4G/3G and GRPS with database on doudorlocal basis

- Available on PC, Laptop, Cell phone both i0S and android, as well as other paymentterminal(POS)

- Fuelplus can set upcenter database to control and monitor all fleet stations, every stationcan have local management system to control the fuel dispenser, ATG,LED price, every fueldispenser can install POS terminal, IC card reader, lD card reader to achieve self-service,every ATG can linked to fuelplus timely - Fuelplus also can work as single station or single dispenser, also container station solution,you can install the application on can smart control screen or POS to achieve the control.itcan working without any PC

Products Specifications

Standard Model List
Dispenser	Model	Product/Pump	Flow Meter /Nozzle /Hose	Display	Flow rate LPM
Suction type	A112S	1	1	2	50L/M
	A122S	1	1	2	45L/M
	A224S	2	2	4	50L/M
Remote / Submersible type	A112R	1	1	2	50L/M
	A122R	1	1	2	45L/M
	A224R	2	2	4	50L/M
Nozzle number, product number ,flow rate all can be customized, contact for more details

Specification
Pump	Type	Optional (tatsuno, tokheim, bennett, submersible)
	Inlet Pressure	≥54kPa.
	Flow rate (L/min. )	55±5
	Suction Distance (m)	6(vertical meter) / 50(horizontal meter)
Flow Meter	Type	Optional
Flow Meter	Accuracy	±0.2%
Motor	Voltage(V)	110V/220V/380V, 50Hz/60Hz
Motor	Capacity(HP)	1HP(0.75kw)
Input Voltage		110V/220V/380V, 50Hz/60Hz
Nozzle		Auto Shut-off Nozzle
Environmental Condition		-40ºC~~+55ºC
Control Type		Solenoid Vale Control Type
Preset		Function Provided(Small LCD Indicator)
Display(Counter)	Type	LCD and Bright Backlight
	Digit of Volume	0~~999, 999(6 Digits), Decimal point can be changed
	Digit of Amount	0~~999, 999(6 Digits), Decimal point can be changed
	Digit of Unit price	0~~9999(4 Digits), Decimal point can be changed
	Digit of Total Range	0~~99, 999, 999, 99
Optional Display	Type	LCD and Bright Backlight
	Digit of Volume	0~~99, 999, 999(8 Digits), Decimal point can be changed
	Digit of Amount	0~~99, 999, 999(8 Digits), Decimal point can be changed
	Digit of Unit price	0~~999999(6 Digits), Decimal point can be changed
	Digit of Total Range	0~~99, 999, 999, 99
Totalizer		1~~9, 999, 999
Hose		4.5m
Weight		250kg
Dimension(L×W×H)		10606002200(mm)
Qty of Container		40FT: 66pcs 20FT: 22pcs

Company Profile

WENZHOU ECOTEC ENERGY EQUIPEMNT CO., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can offer package service from Design, Manufacturing, Delivery to after-sale service, and we have exported to over 60 countries now, also have agent in Africa, Middle East, Asia and South American countries. Customer and Dedication is what we standarding for, we will alwasy focus customers need, and struggle for it, Looking forward to cooperate with you!

Exhibition

Ecotec frequently participate in exhibitions around the world to strengthen contact with customers and provide better services

Certifications

Ecotec produce products with higher standards than the industry, and have been certified by relevant institutions and have a variety of certificates.

Packaging & Shipping

Ecotec accept air, ocean, and land shipping, and will choose the most suitable packaging for you according to the shipping
transportation.

FAQ

1. Who are we?
We are based in Zhejiang, China, start from 2019,sell to Africa(30.00%),Eastern Asia(25.00%),Mid East(20.00%),South
America(5.00%),Southeast Asia(5.00%),South Asia(5.00%),North America(5.00%),Oceania(3.00%),Central America(2.00%). There are total about 100 stuff in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; always final Inspection before shipment; quick respond after sale and full life tech support.

3.What can you buy from us?
FUEL DISPENSER,LPG TANK,LPG SKID,SUBMERSIBLE PUMP,Container Station

4. Why should you buy from us not from other suppliers?
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price. Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Arabic
